Asus TUF Gaming B760M-PLUS WIFI II LGA 1700 Micro ATX Motherboard - Compatible with Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® , Intel® B760 Chipset, 4 x DIMM slots Memory, Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports.

Product Overview

The Asus TUF Gaming B760M-PLUS WIFI II is a durable microATX motherboard designed for Intel® LGA1700 socket, supporting 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors. It features the Intel® B760 chipset, 4 DDR5 DIMM slots supporting up to 192GB memory, and robust storage options with 3 M.2 slots plus 4 SATA 6Gb/s ports. Equipped with PCIe 5.0, Wi-Fi 6E, 2.5Gb Ethernet, and comprehensive cooling solutions, it delivers stable, high-performance gaming and computing experiences.

Specifications

•Product Code: 90MB1HE0-M0EAY0
•Description: ASUS TUF Gaming B760M-PLUS WIFI II Intel LGA 1700 micro ATX Motherboard
•CPU: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Generations, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
•Chipset: Intel® B760 Chipset
•Memory: 4 x DIMM slots, Max. 192GB DDR5, Dual Channel Memory Architecture
•Graphics: 1 x DisplayPort, 1 x HDMI™ port and Graphics specifications may vary between CPU types.
•Expansion Slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x4 slot, 1 x PCIe 4.0 x4 slot.
•Storage: Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
•Ethernet: 1 x Realtek 2.5Gb Ethernet, TUF LANGuard
•Wireless & Bluetooth: Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11ax), Supports 2.4/5/6GHz frequency band, Bluetooth® v5.3.
•USB: 1 x USB 20Gbps port (1 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
Audio:
•Realtek 7.1 Surround Sound High Definition Audio CODEC
-Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
-Supports up to 24-Bit/192 kHz playback
•Audio Features
-Audio Shielding
-Rear optical S/PDIF out port
-Premium audio capacitors
-Dedicated audio PCB layers
•BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
•Manageability: WOL by PME, PXE
•Form Factor: mATX Form Factor, 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
•Operating System: Windows® 11, Windows® 10 64-bit

ASUS TUF Gaming B760-Plus Wi-Fi Intel LGA 1700 ATX Motherboard - Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors, Intel® B760 Chipset, 4 x DIMM, Max. 192GB, DDR5, Graphics specifications may vary between CPU types, ntel® Core™ Processors (14th & 13th & 12th Gen), 1 x PCIe 5.0 x16 slot, otal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports and 1 warranty carry-in.

Product Overview

The ASUS TUF Gaming B760-Plus Wi-Fi motherboard features the Intel B760 chipset with LGA 1700 socket, supporting 12th and 13th Gen Intel Core processors and up to 192GB of DDR5 memory for high-performance gaming and multitasking. It offers PCIe 5.0 slots for next-gen graphics cards, three PCIe 4.0 M.2 slots for fast storage, and robust connectivity including Realtek 2.5Gb Ethernet and Wi-Fi 6. Built with military-grade components and enhanced cooling, this ATX motherboard ensures durability and stable performance for marathon gaming sessions.

Specification
•Product Code: 90MB1ER0-M0EAY0

•Description: ASUS TUF Gaming B760-Plus Wi-Fi Intel LGA 1700 ATX Motherboard

•CPU: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
•Chipset: Intel® B760 Chipset
•Memory: 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
•Graphics: Graphics specifications may vary between CPU types
•Expansion Slots: Intel® Core™ Processors (14th & 13th & 12th Gen), 1 x PCIe 5.0 x16 slot
•Intel® B760 Chipset, 1 x PCIe 3.0 x16 slot, 2 x PCIe 3.0 x1 slots.
•Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
•Ethernet: 1 x Realtek 2.5Gb Ethernet, TUF LANGuard
Wireless & Bluetooth
•Wi-Fi 6
•2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
•Supports 2.4/5GHz frequency band
•Bluetooth® v5.2
Rear USB (Total 6 ports)
•1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
•1 x USB 3.2 Gen 2 port (1 x Type-A)
•3 x USB 3.2 Gen 1 ports (3 x Type-A)
•1 x USB 2.0 port (1 x Type-A)
Front USB (Total 7 ports)
•1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
•1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
•2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
•Realtek 7.1 Surround Sound High Definition Audio CODEC
-Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
-Supports up to 24-Bit/192 kHz playback
•Audio Features
-Audio Shielding
-Rear optical S/PDIF out port
-Premium audio capacitors
-Dedicated audio PCB layers
-Audio cover
Back Panel I/O Ports
•1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
•1 x USB 3.2 Gen 2 port (1 x Type-A)
•3 x USB 3.2 Gen 1 ports (3 x Type-A)
•1 x USB 2.0 port (1 x Type-A)
•1 x DisplayPort
•1 x HDMITM port
•1 x Wi-Fi Module
•1 x Realtek 2.5Gb Ethernet port
•5 x Audio jacks
•1 x Optical S/PDIF out port
•BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
•Operating System: Windows® 11, Windows® 10 64-bit
•Form Factor: ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

•Warranty: 1 year

Product Overview

The Intel® B760 mATX motherboard with LGA 1700 socket supports 12th and 13th Gen Intel® processors and offers ultrafast connectivity, including PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, and Wi-Fi 6. It features comprehensive cooling solutions with VRM, M.2, and PCH heatsinks alongside hybrid fan headers and Fan Xpert 2+ for optimized thermal management. Enhanced with ASUS exclusive tech like OptiMem II for superior memory performance and Aura Sync RGB lighting, it’s ideal for high-performance builds with versatile display options including DisplayPort and dual HDMI.

Features

•Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
•Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
•Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
•Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
•Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Arm Your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.

Highlights

• TUF Protection: SafeSlot, ESD guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
• Military-grade TUF Components: TUF LANGuard, TUF chokes, TUF capacitors, and TUF MOSFETs for maximum durability
• OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• MemOK! II: Automatically fixes boot failures that arise due to memory overclocking and instability
• Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
• GPU Temperature Sensing & Fan Xpert 4: Ensures every fan achieves the best balance of cooling performance and acoustics
• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear

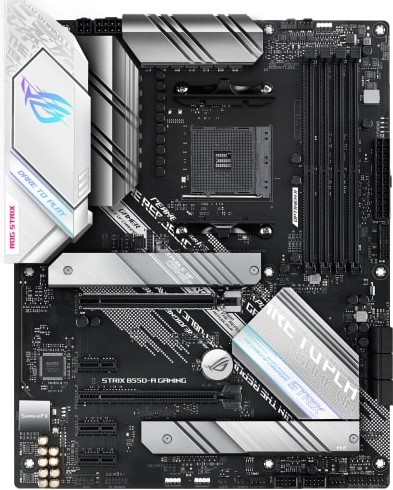

Asus ROG STRIX B550A Socket AM4 ATX Desktop Gaming Motherboard- Processor Manufacturer: AMD, Compatible Processor Series: AMD Ryzen 3. Supported Memory Types: DDR4-SDRAM, Maximum Internal Memory: 128 GB, Memory Slots Type: DIMM. Supported Storage Drive Interfaces: PCI Express 3.0. Motherboard Form Factor: ATX, Motherboard Chipset Family: AMD, Motherboard Chipset: AMD B550. BIOS Type: UEFI, BIOS Memory Size: 256 Mbit, Supports AMD 2-Way CrossFireX Technology, 6x SATA 6Gb/s Ports

Product Overview

The ASUS ROG Strix B550-A Gaming AM4 ATX Motherboard is designed for AMD Ryzen processors, offering robust performance and compatibility. It supports DDR4 memory up to 128GB, PCIe 3.0 interfaces, and features an advanced UEFI BIOS for seamless configuration. With its sleek ATX form factor and AMD B550 chipset, it’s ideal for gaming and high-performance builds.

Features

•PCIe 4.0 Support: Includes dual M.2 slots, with one supporting PCIe 4.0 for fast storage and performance flexibility.
•Powerful Performance: Robust 12+2 power stages, advanced cooling, and support for high-speed memory ensure reliable gaming and multitasking.
•Connectivity: Equipped with WiFi 6E, Intel 2.5 Gb Ethernet, USB 3.2 Gen 2, HDMI 2.1, and DisplayPort for seamless networking and device compatibility.
•Customizable Design: Features Aura Sync RGB lighting and cyberpunk-inspired aesthetics for a personalized gaming setup.
•User-Friendly: Includes DIY-friendly features like pre-mounted I/O shield, BIOS FlashBack™, and intuitive software for easy configuration.

Specifications

•Product Code: ROG-STRIX-B550-A-GAMING
•Description: ASUS ROG Strix B550-A Gaming WiFi II Motherboard
•CPU Support: AMD Ryzen Series Desktop Processors
•Chipset: B550
Memory:
•4 x DIMM slots, Max. 128GB
DDR4 support:
•Ryzen 5000/3000: Up to 4800(O.C.) / 4666(O.C.) / 4600(O.C.) / down to 2133 MHz
•Ryzen 4000 G-Series: Up to 5100(O.C.) / down to 2133 MHz
Graphics:
•1 x DisplayPort 1.2
•1 x HDMI 2.1
Expansion Slots:
•1 x PCIe 4.0 x16 Slot (supports x16 mode)
•1 x PCIe 3.0 x16 slot (supports x4 mode)
•3 x PCIe 3.0 x1 slots
Storage Supports:
•2 x M.2 slots (PCIe & SATA modes)
•6 x SATA 6Gb/s ports (RAID support for RAID 0, 1, and 10)
Ethernet:
•Intel I225-V 2.5Gb Ethernet with ASUS LANGuard
•Wireless & Bluetooth:
•Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
•Bluetooth v5.2
USB Ports:
•Rear: Total of 8 ports (including USB Type-C)
•2 x USB 3.2 Gen 2 ports
•4 x USB 3.2 Gen 1 ports
•2 x USB 2.0 ports
Audio:
•ROG SupremeFX S1220A codec, supports up to 7.1 channel audio
Back Panel I/O Ports:
•Includes USB ports, Wi-Fi module, DisplayPort, HDMI, Ethernet, optical S/PDIF out, and audio jacks.
•Form Factor: ATX (30.5cm x 24.4cm)
•Operating System Support: Windows 11 and Windows 10 (64-bit)

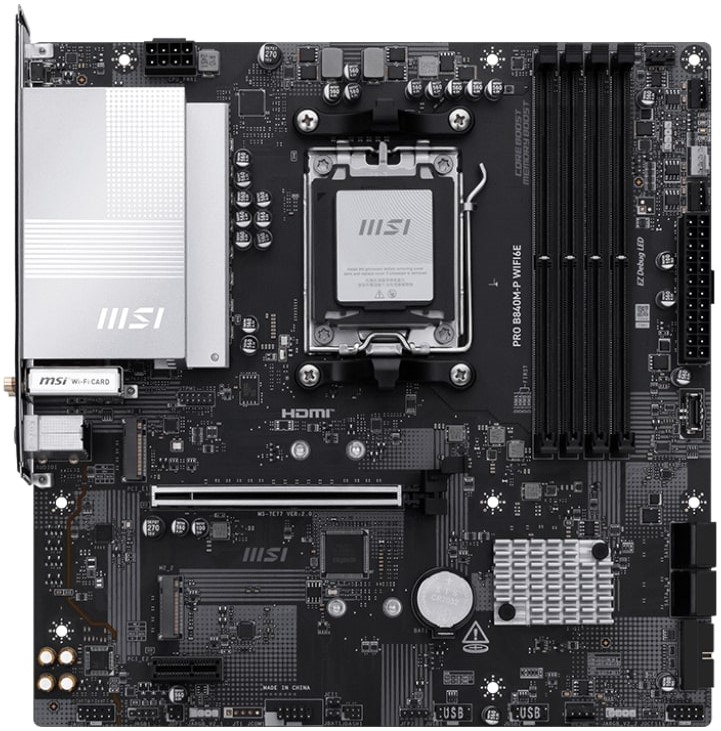

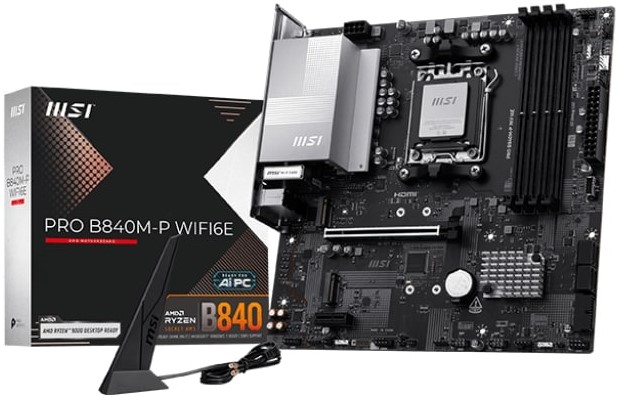

MSI B840 Pro WiFi AM5 Motherboard - AM5 B840 Chipset, Support AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 CPU, 4 x DDR5 UDIMM Memory, 1 x HDMI Onboard Graphics, 2 x M.2 Storage, Wireless LAN And Bluetooth, Support Windows 11 64-Bit, Retail Box, 1 Year Warranty.

Product Overview

MSI PRO B840 chipset motherboard delivers robust AM5 platform support for Ryzen 9000/8000/7000 series processors with up to 256GB DDR5-8000+ (OC). Dual PCIe 4.0 M.2 slots (2280/2260), 4x SATA RAID, Wi-Fi 6E + BT 5.3, 2.5G LAN, HDMI 2.1, and comprehensive USB (incl. 10Gbps Type-C/A rear/front). Rich connectivity with 7.1 Realtek ALC897 audio, EZ Debug/Memory LEDs, RGB headers, TPM 2.0, and Flash BIOS—ideal for gaming, productivity, or workstation builds running Windows 11.

Specifications

•Product Code: PROB840M-PWIFI6E
•Description: MSI Pro B840 Chipset Motherboard
Chipset & CPU Support
•Chipset: AMD B840
•CPU Socket: AM5
CPU Support:
•AMD Ryzen™ 9000 Series Desktop Processors
•AMD Ryzen™ 8000 Series Desktop Processors
•AMD Ryzen™ 7000 Series Desktop Processors
Memory
•Memory Slots: 4 × DDR5 UDIMM
•Maximum Memory Capacity: Up to 256 GB
Memory Support:
•DDR5 8000 – 5600 MT/s (Overclocking)
•DDR5 5600 – 4800 MT/s (JEDEC)
Ryzen™ 9000 Series Maximum OC Speeds:
•1DPC 1R: Up to 8000+ MT/s
•1DPC 2R: Up to 6400+ MT/s
•2DPC 1R: Up to 6400+ MT/s
•2DPC 2R: Up to 5600+ MT/s
Memory Features:
•Supports AMD POR & JEDEC speeds
•Supports AMD EXPO™
•Dual-Channel mode
•Non-ECC, Un-buffered memory
•Supports CUDIMM (Clock Driver bypass mode only)
Graphics
•Onboard Graphics Output: 1 × HDMI™
•HDMI Version: HDMI 2.1
•Maximum Resolution: Up to 4K @ 60Hz*
Expansion Slots
•1 × PCIe x16 Slot (PCI_E1):
•PCIe 4.0 x16 (Ryzen™ 9000 / 7000 Series)
•PCIe 4.0 x8 (Ryzen™ 8700 / 8600 / 8400 Series)
•PCIe 4.0 x4 (Ryzen™ 8500 / 8300 Series)
•1 × PCIe x1 Slot (PCI_E2):
•PCIe 3.0 x1 (From chipset)
Storage
•M.2 Slots: 2 × M.2
•M.2_1 (From CPU): PCIe 4.0 x4, supports 2280 / 2260
•M.2_2 (From CPU): PCIe 4.0 x4, supports 2280 / 2260
•PCIe 4.0 x2 for Ryzen™ 8500 / 8300 Series
•SATA: 4 × SATA 6Gb/s
RAID Support
•SATA RAID: RAID 0, 1, 10
•M.2 NVMe RAID: RAID 0, 1
Audio
•Audio Codec: Realtek® ALC897
•Audio Channels: 7.1-Channel High Definition Audio

•USB Connectivity
Rear Panel:
•4 × USB 2.0
•2 × USB 5Gbps Type-A
•1 × USB 10Gbps Type-A
•1 × USB 10Gbps Type-C
Front Panel:
•4 × USB 2.0
•2 × USB 5Gbps Type-A
•1 × USB 5Gbps Type-C
Networking
•LAN: Realtek® 8125D 2.5Gb Ethernet
Wireless & Bluetooth
•Wi-Fi: Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
•Bands: 2.4GHz / 5GHz / 6GHz (160MHz)
•Max Speed: Up to 2.4Gbps
•Bluetooth: Bluetooth® 5.3 (Bluetooth 5.4 ready with Windows 11 24H2)
LED Features
•4 × EZ Debug LEDs
•1 × EZ Memory Detection LED
Operating System
•OS Support: Windows® 11 64-bit

Asus Prime H610M-R D4 Intel LGA 1700 micro ATX Motherboard - Intel, Processor socket LGA 1700, Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types DDR4-SDRAM, Maximum internal memory 64GB, Memory slots type DIMM. Supported storage drive interfaces M.2, SATA III, Supported storage drive types HDD & SSD. Maximum resolution 3840 x 2160 pixels. USB connector type USB Type-A.

Product Overview

This motherboard supports Intel processors with LGA 1700 socket, including Celeron, Pentium Gold, and 12th, 13th, and 14th Gen Core i3/i5/i7/i9 series. It features up to 64GB DDR4-SDRAM via DIMM slots, supports both HDD and SSD storage through M.2 and SATA III interfaces, and delivers crisp visuals with a maximum resolution of 3840 x 2160 pixels. Connectivity options include multiple USB Type-A ports, making it a versatile choice for modern PC builds.

Features

•Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
•Comprehensive cooling: PCH heatsink
•Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
•5X Protection III: Multiple hardware safeguards for all-round protection

Specifications

•Product Code: 90MB1B40-M0ECY0
•Description: ASUS Prime H610M-R D4 Intel LGA 1700 micro ATX Motherboard
•Processor manufacturer: Intel
•Processor socket: LGA 1700
•Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
•Supported memory types: DDR4-SDRAM
•Maximum internal memory: 64 GB
•Memory slots type: DIMM
•Supported storage drive interfaces: M.2, SATA III
•Supported storage drive types: HDD & SSD
•Maximum resolution: 3840 x 2160 pixels
•USB connector type: USB Type-A

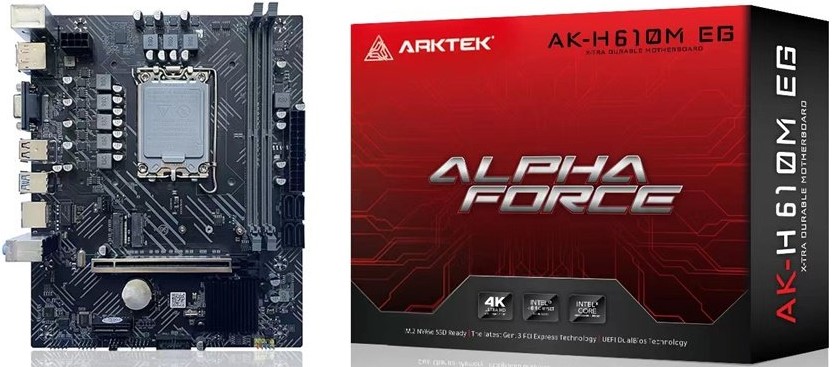

Arktek Intel H610 Motherboard - LGA1700 Socket, ATX Foam Factor, Dual Channel DDR4 Memory Support, Support Core i9/ i7/ i5/ i3 Processors, Integrated Graphics Processor- HD Graphics Support, 2 DIMM Memory Slots, Realtek 8111H 100M/1000Mbps Support Wake-Up on LAN, PXE Function, Built-In 6 Channel HD Audio Chip, Retail Box, 3 Years Warranty

Product Overview

The Intel H610 motherboard supports Intel LGA1700 Core i9/i7/i5/i3 processors with integrated Intel HD Graphics for reliable performance. It features dual-channel DDR4 memory support up to 2800MHz, 4 SATA 3.0 ports, and M.2 slots including SATA and Wi-Fi/Bluetooth. Connectivity includes Realtek Gigabit LAN, multiple USB 2.0/3.0 ports, onboard 6-channel HD audio, and PCIe slots for expansion.

Specifications

•Product Code: AK-H610M-EG
•Description: Arktek Intel H610 LGA1700 ATX Motherboad
•CPU Support: Supports Intel® Socket LGA1700 Core™I9/ i7/ i5/i3 processors
•Chipset: Intel H610 Chipset
•On-Board Graphics: Integrated Graphics Processor-Intel® HD Graphics support
•Memory: Dual Channel DDR4 2133/2400/2800MHz XMP overclock (Max. up to 32GB each)
•DIMM: 2 x Memory Slots
•LAN: Realtek 8111H 100M/1000Mbps Support wake-up on LAN, PXE function
•Audio: Built-in 6-channel HD audio chip
•Real I/O: 1 x PS/2 mouse port, 1 x PS/2 keyboard port,1 x DP port, 1 x VGA port, 1 x HDMI port, 2 x USB 2.0 port, 2 x USB 3.0 port, 1 x LAN jack, 3 x Audio jack
•Internal I/O: 1 x USB 2.0 header supports additional 2 USB 2.0 ports, 1 x USB 3.0 header supports additional 2 USB 3.0 ports
•SATA: 4 X SATA3.0 M.2 (1*M.2_SATA） 1*M.2 WIFI/Bluetooth Port
•Form Factor: ATX (22 x 18 cm)
•Expansion Slots: 1 x PCI Express x16 slot 1 *PCI Express x1 slot
•OS Support: Support Windows 7 / 8 / 8.1 / 10(x64)
•Mounting: 6 mounting holes
•Accessories: 1 x SATA cable, 1 x I/O Backboard, 1 x User Manual, 1 x Driver CD

Asus Prime B450M-K II AMD Socket AM4 Micro ATX Motherboad -  for Ryzen AM4 processors features ultrafast connectivity including M.2 support, USB 3.2 Gen 1 Type-A, and 1 Gb Ethernet for seamless performance. It offers comprehensive cooling solutions with a PCH heatsink and Fan Xpert technology to maintain optimal temperatures. Enhanced with 5X Protection III hardware safeguards and customizable LED illumination for PCIe slots and audio paths, it ensures reliability and stylish aesthetics for your build.

Product Overview

This Micro-ATX motherboard features the AMD B450 chipset and supports a wide range of Ryzen processors, including the latest 5000 series and those with Radeon Vega Graphics, using the AM4 socket. It offers flexible memory support with 2 DDR4 DIMM slots up to 64GB and high-speed connectivity options such as PCIe 3.0 x16, M.2 NVMe SSD slot, and multiple USB ports. Equipped with versatile video outputs (HDMI 2.0b, VGA, DVI-D), Realtek Gigabit Ethernet, and high-definition audio, it is ideal for building a powerful and cost-effective PC.

Features
•Comprehensive cooling: PCH heatsink, and Fan Xpert
•Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 1 Type-A
•5X Protection III: Multiple hardware safeguards for all-around system protection
•LED illumination: Lighting control for both PCIe slot and audio trace paths

Specifications

•Product Code: 90MB1600-M0EAY0
•Description: Asus Prime B450M-K II AMD Socket AM4 Micro ATX Motherboad
•EAN: 4718017932387
•Type: Motherboard
•Brand: Asus
•Series: Prime
•Model: Prime B450M-K II
•SATA Ports: 4x SATA 6Gb/s
•M.2 Slot: 1x M.2
•PCI-E X1 slot: 2x PCIe X1
•Internal USB Connectors: 2 x USB 2, 1 x USB 3.2 Gen 1
•Rear USB Ports: 4 x USB 3.2 Gen 1 Type-A, 3 x USB 3.2 Gen 2 Type-A
•DisplayPort Connector: 1 x DisplayPort
•HDMI Connector: 1 x HDMI Port
•RAM Type: DDR4
•Memory Slot Support: Up to 64 GB
•Socket: AMD Socket AM4
•Chipset: AMD B450
•Form Factor: Micro-ATX
•CPU: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon Processors
•Ethernet: 1 x Intel 2.5Gb

•Weight: 2.12 kg
•Dimensions: 24.4cm x 24.4cm

Asus Prime A520M-K Motherboard CPU: Socket: LGA1200 Processor Support: 10th and 11th Gen Intel Core, Pentium Gold, and Celeron processors Technology: Intel Turbo Boost Technology 2.0 Chipset: Intel H510 Form Factor: Micro ATX Memory: Slots: 2 x DIMM Memory Support: DDR4 Max Capacity: 64GB Architecture: Dual-channel Memory Speed: DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200 /3000/2800/2666/2400/2133 MHz Un-buffered Memory Graphics: Ports: 1 x D-Sub, 1 x HDMI 2.0 Resolution: HDMI 2.0 (4K@60Hz) Expansion Slots: 1 x PCIe 3.0 x16 2 x PCIe 3.0 x1 Storage: 4 x SATA 6Gb/s ports 1 x M.2 slot (Key M) Ethernet: 1 x Realtek 1Gb Ethernet USB (Rear): Total 6 ports 4 x USB 3.2 Gen 1 ports (Type-A) 2 x USB 2.0 ports (Type-A) USB (Internal): 2 x USB 3.2 Gen 1 port(s) (Type-A) 4 x USB 2.0 port(s) (Type-A) Internal I/O Ports: 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector

Product Overview

The ASUS Prime A520M-K Motherboard is designed for 10th and 11th Gen Intel processors, featuring an LGA1200 socket and Intel H510 chipset for optimal performance. It supports dual-channel DDR4 memory up to 64GB with speeds reaching 4600 MHz (overclocked), ensuring fast and efficient data handling. With multiple connectivity options, including HDMI 2.0 for 4K resolution and M.2 slots for high-speed storage, this micro ATX motherboard is perfect for both everyday users and DIY PC builders.

Specifications

•Product Code: 90MB1500-M0EAY0
•Description: ASUS PRIME A520M-K AMD AM4 M/ATX BOARD
•Processor manufacturer: AMD
•Compatible processor series: 10th and 11th Gen Intel Core, Pentium Gold, and Celeron processors Technology
•Supported memory types: DDR4-SDRAM
•Memory slots type: DIMM
•Supported memory clock speeds: DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200 /3000/2800/2666/2400/2133 MHz
•Supported storage drive interfaces: M.2, Serial ATA
•LAN controller: Realtek RTL8111H
•Motherboard form factor: micro ATX
•Motherboard chipset: AMD A520M-k

The MSI A520M-A PRO motherboard supports 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series processors, utilizing the AMD A520 chipset. It features dual-channel DDR4 memory support up to 64GB with speeds reaching 4600 MHz in OC mode, along with a PCIe x16 slot for graphics expansion and four SATA III ports for storage.

Product Overview

The MSI A520M-A PRO motherboard is designed to deliver reliable performance and stability, supporting 3rd Gen AMD Ryzen processors and up to 64GB of DDR4 RAM. It features a robust set of connectivity options, including Gigabit LAN via Realtek RTL8111H, multiple USB ports, HDMI, and DVI-D outputs for versatile display configurations. With its micro-ATX form factor and extensive compatibility with popular memory brands, this motherboard offers flexibility and high-quality audio through Realtek codecs for enhanced user experience

Features

•Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
•Supports DDR4 Memory, up to 4600(OC) MHz
•Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
•Core Boost: With premium layout and digital power design to support more cores and provide better performance
•DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
•2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
•Audio Boost: Reward your ears with studio grade sound quality
•Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

Specifications

•Product Code: A520M-APRO
•Description: MSI A520M-A PRO AMD Gaming Motherboard
•Socket: AMD Socket AM4
•CPU (Max Support): Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
•Chipset: AMD® A520 Chipset
•DDR4 Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC – Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode
•Memory Channel: Dual
•DIMM Slots: 2
•Max Memory (GB): 64
•PCI-E x16: 1
•PCI-E GEN: Gen3
•PCI-E x1: 1
•SATAIII: 4
•M.2 Slot: 1
•TPM (Header): 1
•RAID: 0/1/10
•LAN: 1x Realtek® RTL8111H Gigabit LAN
•USB 3.2 ports (Front): 2(Gen 1, Type A)
•USB 3.2 ports (Rear): 4(Gen 1, Type A)
•USB 2.0 ports (Front): 4
•USB 2.0 ports (Rear): 2(Type A)
•Serial Ports(Front): 1
•Audio ports (Rear): Realtek® ALC892/ALC897 Codec
•DVI-D: 1
•HDMI: 1
•DirectX: 12
•Form Factor: M-ATX
•Operating System: Support for Windows® 10 64-bit

The MSI A520M PRO motherboard is designed to support a wide range of AMD Ryzen processors, including the 5000 and 4000 series, utilizing the AMD Socket AM4 and A520 chipset for reliable performance. It features dual-channel DDR4 memory support of up to 4600MHz (OC), multiple expansion slots, and various display interfaces, including HDMI and DisplayPort, ensuring versatility for any build. With robust connectivity options, including USB 3.2 ports and Realtek Gigabit LAN, this motherboard is ideal for both gaming and professional applications.

Product Overview

MSI PRO Series motherboards are expertly crafted to enhance professional workflows, offering stable functionality and high-quality assembly for optimized performance. With features like Intel LAN for reliable connectivity, extensive memory testing, and superior audio quality, they cater to demanding users who require efficiency and reliability. Ideal for professionals and tech enthusiasts alike, these motherboards provide the tools needed to fine-tune systems for maximum performance.

Features

•Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
•Supports DDR4 Memory, up to 4600(OC) MHz
•Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
•Core Boost: With premium layout and digital power design to support more cores and provide better performance.
•DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
•2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
•Audio Boost: Reward your ears with studio-grade sound quality

Specifications

•Product Code: A520M-PRO
•Description: MSI A520M-PRO AMD AM4 MATX Gaming Motherboard
•Socket: AMD Socket AM4
•CPU (Max Support): Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series process
•Chipset: AMD A520 Chipset
•DDR4 Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode
•Memory Channel: Dual
•DIMM Slots: 2
•Max Memory (GB): 64
•PCI-E x16: 1
•PCI-E GEN: Gen3
•PCI-E x1: 2
•SATAIII: 4
•M.2 Slot: 1
•TPM (Header): 1
•RAID: 0/1/10
•LAN: Realtek RTL8111H Gigabit LAN
•USB 3.2 ports (Front): 2(Gen 1, Type A)
•USB 3.2 ports (Rear): 4(Gen 1, Type A)
•USB 2.0 ports (Front): 4
•USB 2.0 ports (Rear): 2(Type A)
•Serial Ports(Front): 1
•Audio ports (Rear): Realtek ALC892/ALC897 Codec
•DisplayPort: 1
•HDMI: 1
•VGA: 1
•DirectX: 12
•Form Factor: M-ATX
•Operating System: Support for Windows 10 & Windows 11
