1 to 21 of 21 items

Page 1

Stock Code: TL-SF1048

TP Link 48 Port 10 100Mbps Rackmount Switch, Retail Box , 2 Year Limited Warranty

TP Link 48 Port 10 100Mbps Rackmount Switch, Retail Box , 2 Year Limited Warranty

Product Overview

The TP Link 48 Port 10 100Mbps Rackmount Switch ( TL-SF1048) is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. All 48 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-eff cient technology, TL-SF1048 can save up to 50%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

Features

•48 10/100Mbps RJ45 ports

•Innovative energy-efficient technology saves power up to 50%

•Supports MAC address self-learning and auto MDI/MDIX

•Standard 19-inch rack-mountable steel case

Specifications

•Product code: TL-SF1048

•Description: TP-Link TL-SF1048 48-Port 10/100Mbps Rackmount Switch

•Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

•Interface48 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

•Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

•100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

•Fan Quantity Fanless

•Physical Security Lock No

•Power Supply 100-240VAC, 50/60Hz

•Power Consumption Maximum: 9.9W

•Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)

•Mounting Rack Mountable

•Max Power Consumption 9.9W(220V/50Hz)

•Max Heat Dissipation 33.78BTU/h

•Switching Capacity 9.6Gbps

•Packet Forwarding Rate 7.14Mpps

•MAC Address Table 8K

•Advanced Functions Green Technology

•802.3X Flow Control

•Green Technology Innovative energy-efficient technology saves power up to 50%

•Transfer Method Store-and-Forward

•Certification FCC, RoHS

•Package Contents 48-Port 10/100Mbps Rackmount Switch

•System Requirements Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.

•Environment Operating Temperature: 0℃~40℃ (32℉~104℉);

•Storage Temperature: -40℃~70℃ (-40℉~158℉);

•Operating Humidity: 10%~90% non-condensing;

•Storage Humidity: 5%~90% non-condensing

Stock Code: TL-SG1016

TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch, Retail Box , 2 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch, Retail Box , 2 year Limited Warranty

Product Overview

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption, making it an eco-friendly solution for your business network.

Features

•16× 10/100/1000Mbps RJ45 ports

•Innovative energy-efficient technology saves power consumption

•Supports MAC address self-learning and auto MDI/MDIX

•Standard 19-inch rack-mountable steel case

Specifications

•Product code: TL-SG1016

•Description: TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch

•Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, IEEE 802.1p

•Interface: 16× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

•Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

•100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

•Fan Quantity Fanless

•Physical Security Lock Yes

•Power Supply 100-240VAC, 50/60Hz

•Dimensions ( W x D x H ) 17.3 × 5.5 × 1.7 in. (440 × 140 × 44 mm)

•Mounting Rack Mountable

•Max Power Consumption 10.68 W (220 V / 50 Hz)

•Max Heat Dissipation 36.31 BTU/h

•Switching Capacity 32Gbps

•Packet Forwarding Rate 23.8Mpps

•MAC Address Table 8K

•Advanced Functions

•Isolation Mode: Ports 1-14

•Loop Prevention: Ports 1-16

•Jumbo Frame 10KB

•QoS 802.1p/DSCP QoS

•Green Technology Yes

•Transfer Method Store-and-Forward

•Certification FCC, CE, RoHS

•Package Contents 16-Port Gigabit Rackmount Switch

•Power Cord

•Installation Guide

•Rackmount Kits

•Rubber Feet

•Environment Operating Temperature: 0℃~40℃ (32℉~104℉);

•Storage Temperature: -40℃~70℃ (-40℉~158℉);

•Operating Humidity: 10%~90% non-condensing;

•Storage Humidity: 5%~90% non-condensing

Stock Code: TL-SG108PE

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE, Retail Box, 1 year Limited Warranty

Product Overview

The TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE offers eight 10/100/1000 Mbps RJ45 ports, including four that deliver Power over Ethernet (PoE) to connected devices. It supports IEEE 802.3af/at standards, providing up to 30W per port for powering devices like IP cameras and access points.

Specifications

•Product code: TL-SG108PE

•Description: TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE

•Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,

•IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at

•Interface Eight 10/100/1000Mbps RJ45 Ports

•AUTO Negotiation/AUTO MDI/MDIX

•Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

•EIA/TIA-568 100Ω STP (maximum 100m)

•100BASE-TX: UTP category 5, 5e cable (maximum 100m)

•EIA/TIA-568 100Ω STP (maximum 100m)

•1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

•EIA/TIA-568 100Ω STP (maximum 100m)

•Fan Quantity Fanless

•Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A)

•PoE Ports (RJ45) Standard: 802.3 af/at compliant

•PoE Ports: Port 1- Port 4

•PoE Power Budget: 64W

•Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)

•Max Power Consumption 5.41 W (220V/50Hz with no PD connected)

•74.27 W (220V/50Hz with 64 W PD connected)

•Max Heat Dissipation 18.45 BTU/h (with no PD connected)

•253.26 BTU/h (with 64 W PD connected)

•Switching Capacity 16 Gbps

•Packet Forwarding Rate 11.9 Mpps

•MAC Address Table 4 K

•Packet Buffer Memory 1.5 Mb

•Jumbo Frame 16 KB

•Quality of Service Support Port-Based/802.1p/DSCP priority

•Support 4 priority queues

•Rate Limit

•Storm Control

•L2 Features IGMP Snooping V1/V2/V3

•Static Link Aggregation

•Port Mirroring

•Cable Diagnostics

•Loop Prevention

•PoE Auto Recovery

•VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

•MTU/Port/Tag VLAN

•Management Web-based GUI

•Easy Smart Configuration Utility

•Transmission Method Store-And-Forward

Stock Code: TL-SF1024

TP-Link TL-SF1024 24-Port 10/100Mbps Desktop Switch, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TP-Link TL-SF1024 24-Port 10/100Mbps Desktop Switch, Retail Box, 1 year Limited Warranty

Product Overview

TP-Link TL-SF1024 24-Port 10/100Mbps Desktop Switch - Efficiently expands your network with 24 high-speed ports, offering seamless connectivity for your devices and ensuring reliable data transmission in a desktop-friendly design.

Features

•Innovative energy-efficient technology saves power up to 40%

•100% Data filtering rate eliminates all error packets

•Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

•Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput

•4.8Gbps Switching Capacity

•Auto-MDI/MDIX eliminates the need for crossover cables

•Supports MAC address auto-learning and auto-aging

•Support the port N-Way Auto-Negotiation, Store and Forward

•Compact size design for desktops, Rack mountable

•Plug and Play design simplifies installation

Specifications

•Product code: TL-SF1024

•Description: TP-Link TL-SF1024 24-Port 10/100Mbps Desktop Switch

•Standards and Protocols

•IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

•24 10/100 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

•10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

•100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

•Switching Capacity: 4.8Gbps

•MAC Address Table: 8K

•Packet Forwarding Rate: 3.57Mpps

•Green Technology: Innovative energy-efficient technology saves power up to 40%

•Transfer Method: Store-and-Forward

•Fan Quantity: Fanless

•Dimensions (W x D x H): 440 x 180 x 44 mm

Stock Code: TL-SF1024D

TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop Switch, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop Switch, Retail Box, 1 year Limited Warranty

Product Overview

Expand your network with the TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop Switch, featuring 24 RJ45 ports for seamless connectivity. With energy-efficient technology saving up to 75% power and support for MAC address self-learning, it offers reliable performance in a durable steel case.

Features

•24 10/100M RJ45 ports.

•Innovative energy-efficient technology saves power up to 75%

•Supports MAC address self-learning and auto MDI/MDIX.

•Standard 13-inch steel case.

Specifications

•Product code:TL-SF1024D

•Description: TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop Switch

•Interface: 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

•Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

•100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

•Fan Quantity: Fanless

•Physical Security Lock Yes

•Power Supply: External Power Adapter(Output: 9VDC/0.6A)

•Power Consumption: Maximum: 3.2W

•Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm)

•Mounting: Rack Mountable

•Max Power Consumption: 3.19W(220V/50Hz)

•Max Heat Dissipation: 10.88BTU/h

•Switching Capacity: 4.8Gbps

•Packet Forwarding Rate 3.57Mpps

•MAC Address Table: 8K

•Buffer Memory 2Mb

•Green Technology: Innovative energy-efficient technology saves power up to 75%

•Transfer Method: Store-and-Forward

•Certification FCC, RoHS

•Package Contents: 24-Port 10/100Mbps Desktop/Rackmount Switch

•Power Cord

•Installation Guide

•Rackmount Kit

•Rubber Feet

•Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)

•Storage Temperature: -40℃~70℃ (-40℉~158℉)

•Operating Humidity: 10%~90% non-condensing

•Storage Humidity: 5%~90% non-condensing

Stock Code: TL-SF1024D

TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop Switch, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop Switch, Retail Box, 1 year Limited Warranty

Product Overview

Features

•24 10/100M RJ45 ports.

•Innovative energy-efficient technology saves power up to 75%

•Supports MAC address self-learning and auto MDI/MDIX.

•Standard 13-inch steel case.

Specifications

•Product code:TL-SF1024D

•Description: TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop Switch

•Interface: 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

•Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

•100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

•Fan Quantity: Fanless

•Physical Security Lock Yes

•Power Supply: External Power Adapter(Output: 9VDC/0.6A)

•Power Consumption: Maximum: 3.2W

•Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm)

•Mounting: Rack Mountable

•Max Power Consumption: 3.19W(220V/50Hz)

•Max Heat Dissipation: 10.88BTU/h

•Switching Capacity: 4.8Gbps

•Packet Forwarding Rate 3.57Mpps

•MAC Address Table: 8K

•Buffer Memory 2Mb

•Green Technology: Innovative energy-efficient technology saves power up to 75%

•Transfer Method: Store-and-Forward

•Certification FCC, RoHS

•Package Contents: 24-Port 10/100Mbps Desktop/Rackmount Switch

•Power Cord

•Installation Guide

•Rackmount Kit

•Rubber Feet

•Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)

•Storage Temperature: -40℃~70℃ (-40℉~158℉)

•Operating Humidity: 10%~90% non-condensing

•Storage Humidity: 5%~90% non-condensing

Stock Code: TL-SF1016

TP-Link TL-SF1016 16-Port 10/100Mbps Rackmount Switch, Retail Box , 2 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TP-Link TL-SF1016 16-Port 10/100Mbps Rackmount Switch, Retail Box , 2 year Limited Warranty

Product Overview

The 16-Port 10/100Mbps Rackmount Switch TL-SF1016 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

Features

•16 10/100Mbps RJ45 ports

•Innovative energy-efficient technology saves power up to 75%

•Supports MAC address self-learning and auto MDI/MDIX

•Standard 19-inch rack-mountable steel case

Specifications

•Product code: TL-SF1016

•Description: TP-Link TL-SF1016 16-Port 10/100Mbps Rackmount Switch

•Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

•Interface: 16 10/100Mbps RJ45 Ports

•AUTO Negotiation/AUTO MDI/MDIX

•Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

•100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

•Fan Quantity Fanless

•Physical Security Lock Yes

•Power Supply 100-240VAC, 50/60Hz

•Power Consumption Maximum: 2.1W

•Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)

•Max Power Consumption 2.06W(220V/50Hz)

•Max Heat Dissipation 7.03BTU/h

•Switching Capacity 3.2Gbps

•Packet Forwarding Rate 2.38Mpps

•MAC Address Table 8K

•Buffer Memory 2Mb

•Advanced Functions Green Technology

•802.3X Flow Control

•Green Technology Innovative energy-efficient technology saves power up to 70%

•Transfer Method Store-and-Forward

•Certification FCC, RoHS

•Package Contents 16-Port 10/100Mbps Rackmount Switch

•Power Cord

•Installation Guide

•Rackmount Kit

•Rubber Feet

•Environment Operating Temperature: 0℃~40℃ (32℉~104℉);

•Storage Temperature: -40℃~70℃ (-40℉~158℉);

•Operating Humidity: 10%~90% non-condensing;

•Storage Humidity: 5%~90% non-condensing

Stock Code: TL-SG108E

TP-Link 8-Port Gigabit Easy Smart Switch, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TP-Link 8-Port Gigabit Easy Smart Switch, Retail Box, 1 year Limited Warranty

Product Overview

The TP-Link 8-Port Gigabit Easy Smart Switch offers a seamless way to expand your network with eight 10/100/1000Mbps RJ45 ports, ensuring high-speed connectivity for multiple devices. Its plug-and-play design requires no configuration, making installation straightforward and hassle-free, while intelligent management features allow for easy network monitoring and traffic prioritization.

Specifications

•Product code: TL-SG108E

•Description: TP-Link 8-Port Gigabit Easy Smart Switch

•Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

•Interface 8 10/100/1000 Mbps RJ45 Ports

•AUTO Negotiation/AUTO MDI/MDIX

•Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

•EIA/TIA-568 100Ω STP (maximum 100m)

•100BASE-TX: UTP category 5, 5e cable (maximum 100m)

•EIA/TIA-568 100Ω STP (maximum 100m)

•1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

•EIA/TIA-568 100Ω STP (maximum 100m)

•Fan Quantity Fanless

•Power Supply External Power Adapter(Output: 5 VDC/ 0.6 A)

•Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in.

•(158 × 101 × 25 mm)

•Max Power Consumption 2.7W

•Max Heat Dissipation 9.3 BTU/h

•Switching Capacity 16 Gbps

•Packet Forwarding Rate 11.9 Mpps

•MAC Address Table 4 K

•Packet Buffer Memory 1.5 Mb

•Quality of Service Support Port-based/802.1p/DSCP priority

•Support 4 priority queues

•Rate Limit

•Storm Control

•L2 Features IGMP Snooping V1/V2/V3

•Static Link Aggregation

•Port Mirroring

•Cable Diagnostics

•Loop Prevention

•VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

•MTU/Port/Tag VLAN

•Transmission Method Store-And-Forward

Stock Code: 530378

Intellinet 5 Port Gigabit Ethernet Switch - Desktop Size, Metal Housing, IEEE 802.3az (Energy Efficient Ethernet), Retail Box, 2 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Intellinet 5-Port 10/100/1000 Mbps Gigabit Desktop Switch Metal Case Retail Box Limited Lifetime Warranty. Easy to install, with auto-learning capabilities.

The INTELLINET NETWORK SOLUTIONS Gigabit Ethernet Desktop Switch is perfect for the home or small office, delivering top speeds to the desktop to satisfy your demanding network needs.

High-Speed Performance
This desktop switch includes five Gigabit Ethernet ports, providing you with high performance on your network to handle quick transfer speeds to support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications.

Auto Features
This network LAN switch includes many auto features that make it easy to use. No configuration is required, making installation Plug and Play and hassle free. And Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the five ports on this network LAN switch automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance.

Reliable Operation
The Gigabit Ethernet Desktop Switch supports flow control when operating in half duplex mode, and supports IEEE 802.3ab in full duplex mode, ensuring that your data transfer and network connectivity continue to run smoothly and uninterrupted. This, in conjunction with the broadcast storm control and the store and forward switching method, further ensure that your connections remain active even under extremely busy conditions.

Stock Code: 561730

Intellinet 8-Port Fast Ethernet Switch - IEEE 802.3az (Energy Efficient Ethernet) - Plastic Case, Desktop, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Intellinet 8-Port Fast Ethernet Switch - Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Black, Retail Box, 1 year Limited Warranty

Product Overview

The 8-Port Fast Ethernet Switch from Intellinet Network Solutions is perfect for home offices and small-size businesses looking for a durable switch that is reliable and easy to install. Small and powerful, this Fast Ethernet Switch is easy to install and connects up to eight computers, servers, printers, switches or any other Ethernet devices at 10 or 100 Mbps over Ethernet cables, and it works with any operating system. The auto features of this switch make installation plug-and-play and hassle-free. Plus, it has Green Ethernet technology, allowing it to monitor power usage and turn off unused ports to save electricity.

Features

•Compact switch with eight Fast Ethernet ports to expand your network in an instant

•Eight 10/100 auto-sensing ports automatically detect optimal network speeds

•Supports any combination of 10 Mbps or 100 Mbps network devices

•Switch fabric of 1.6 Gbps

•Buffer memory of 448 Kbytes

Specifications

•Product code: 561730

•Description: Intellinet 8-Port Fast Ethernet Switch

•Ports: eight 10/100 Mbps RJ45

•Cable: Cat3, 4, 5, 6 UTP/STP

•Duplex modes: all ports (up to 200 Mbps)

•Uplink: all ports Auto MDI/MDX (Auto Uplink)

•Forwarding rate: 1,190,000 pps

•Buffer memory: 448 KBytes

•Dimensions (L x W x H): 125 x 53 x 22 mm (4.92 x 2.09 x 0.87 in.)

•Weight: 0.15 kg (0.33 lbs.)

•External power adapter: 5.0 VDC, 0.55 A

•Power consumption: 1.26 W (max.)

Stock Code: 560696

Manhattan 5 Port Gigabit Ethernet Switch Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Retail Box, 2 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Manhattan 5-Port Compact Desktop Gigabit Ethernet Switch with Five RJ45 10/100/1000 Mbps Ports and IEEE 802.3az Energy Efficient Ethernet Technology , Retail Box, 2 year Limited Warranty

Easily add Ethernet-ready devices to your home or office network at Gigabit speeds

Product Overview

The Manhattan 5-Port Gigabit Ethernet Switch is perfect for home office or entertainment system use, as well as many small office applications. Small, powerful and reliable, this Gigabit Ethernet Switch is easy to install and connects up to five Ethernet-ready devices — computers, gaming systems, network printers, media streamers, network attached storage, Smart TVs ... you name it — at speeds of up to 1000 Mbps (1 Gigabit) over standard Cat5e or Cat6 Ethernet cables.

The auto features of this switch make installation plug and play and hassle free. Plus, it has Green Ethernet technology, allowing it to monitor power usage and turn off unused ports to save electricity.

Features
• 5-port Gigabit Ethernet switch expands your network in an instant
• Easy plug-and-play installation — simply power it up and start using it
• Green Ethernet power-saving technology deactivates unused ports
• Supports any combination of 10 Mbps, 100 Mbps or 1 Gbps network devices
• Ultra-compact, Fanless design ideal for home and office applications
• Store and forward switching architecture
• Five 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Compatible with all Windows and Macintosh systems

Specifications
• Connectors: 5 10/100/1000 Mbps RJ45 ports
• Cable: Cat3, 4, 5 UTP/STP
• Duplex modes: all ports (up to 200 Mbps)
• Uplink: all ports Auto MDI/MDX (Auto Uplink)
• Switch architecture: store and forward switch technology

Standards
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3x (Flow Control and Backpressure)
IEEE 802.3az (Energy Efficient Ethernet)

• Filter/forward rate:
- 10BaseT: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)
- 1000Base-T: 1,488,000 pps (packets per second)
• MAC address table: 2,048 entries
• Buffer memory: 256 kBytes
• Jumbo frame support: 9 kB
• Backplane speed / switch fabric: 10 Gbps

LEDs
• Power
• Link/Activity

Power
• External AC adapter: 5 V, 1 A

Environmental
• Dimensions: 140 (w) x 78 (l) x 28 (h) mm
• Weight: 0.33 kg
• Operating temperature: 0 – 40˚C
• Humidity: 10 – 90% (non-condensing)

Package Contents
• 5-Port Gigabit Ethernet Switch
• Power adapter
• User manual

Stock Code: 523318

Intellinet 8-Port Fast Ethernet Office Switch - IEEE 802.3az (Energy Efficient Ethernet) - Metal Case, Desktop, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Intellinet 8-Port 10/100 Mbps Desktop Switch Metal Case Retail Box 2 year Limited Warranty

Product Overview

Easily add more computers or other Ethernet devices to your network

The INTELLINET NETWORK SOLUTIONS 8-Port Fast Ethernet Office Switch is perfect for the small and medium-size business looking a durable switch that is reliable and easy to install. The metal case is more durable than a plastic enclosure, and is very appropriate for locations with potentially harsh environments, such as a warehouse, factory or wiring closet.

Green Ethernet Technology
More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new energy efficient IEEE 802.3az technology, the Intellinet 10/100 Mbps switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet switch can adjust the level of power output based on the length of the network cable connected to a particular port. With the Intellinet Network Solutions Fast Ethernet Office Switch you will enjoy maximum network performance, but when things slow down it automatically scales back power usage to conserving energy and save money.

Versatile
The Fast Ethernet Office Switch connects up to eight computers, servers, printers, switches or any other Ethernet devices at 10 or 100 Mbps over Ethernet cables, and works with any operating system.

Features

Eight 10/100 auto sensing ports - automatically detect optimal network speeds

Supports any combination of 10 Mbps or 100 Mbps network devices

Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length

All RJ45 ports with Auto-MDIX (auto uplink) support

Supports NWay auto-negotiation

Store and forward switching architecture

Full/half duplex operation

IEEE 802.3x flow control for full duplex

Zero packet loss backpressure flow control for half duplex

Packet filtering/forwarding rates: 148.800 pps (100 Mbps), 14.880 pps (10 Mbps)

Supports 1024 MAC address entries

96 kBytes buffer memory

Compact metal case

Specifications

10Base-T Cat3, 4, 5 UTP/STP RJ-45
- 100Base-TX Cat5 UTP/STP RJ-45

Packet filter/forwarding rate:
- 148,800 pps (100 Mbps)
- 14,880 pps (10 Mbps)

Buffer memory: 96 kBytes

MAC address table: 1024 entries

Switch architecture: store and forward

Stock Code: TL-SF1008D

TP Link 8 Port Auto Negotiation Switch- 10/ 100 Mbps , RJ45 Ports - Supports Auto MDI/MDIX, Green Ethernet Technology Saves Power Consumption, IEEE 802.3x Flow Control Provides Reliable Data Transfer, Plastic Case, Desktop Design, Plug And Play, No Configuration Required, Retail Box, 1 Year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.

Features

High Performance

•TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

Easy to Use

•The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specifications
•Product code:TL-SF1008D
•Description: TP-Link 8port 10/100Mbps auto-negotiation RJ45 ports
•Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
•Interface: 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
•Fan Quantity Fanless
•Power Supply External Power Adapter(Output: 5.0VDC / 0.6A)
•External Power Supply 100-240VAC, 50/60Hz
•Buffer Size 768Kb
•Data Rates 10/100Mbps at Half Duplex ;
•20/200Mbps at Full Duplex
•LED Indicator Power, 1, 2, 3, 4, 5, 6, 7, 8
•Dimensions ( W x D x H ) 5.3*3.1*0.9 in. (134.5*79*22.5mm)
•Max Power Consumption 2.05W(220V/50Hz)
•Max Heat Dissipation 6.99BTU/h
•Transfer Method Store and Forward
•Advanced Functions Green Technology
•802.3X Flow Control, Back Pressure

Stock Code: TL-SF1008D

Click Here For More Detail

Click Here For a Quick Description

Features

High Performance

Easy to Use

Stock Code: TE100-S5

TrendNet 5 Port 10 100 Mbps Fast Ethernet GREENnet Desktop Switch -56KB Data RAM buffer, 1 Gbps Switching Fabric ,Plug and Play, up to 200 Mbps (full duplex) Data Transfer Rate, Compact design, Non-blocking wire-speed architecture, Power saving GREENnet technology reduces power consumption by up to 40%*, Retail Box, 1 year Limited Warranty.

Click Here For More Detail

Click Here For a Quick Description

TrendNet (TE100-S5) 5 Port 10 100 Mbps Fast Ethernet GREENnet Desktop Switch -56KB Data RAM buffer, 1 Gbps Switching Fabric ,Plug and Play, up to 200 Mbps (full duplex) Data Transfer Rate, Compact design, Non-blocking wire-speed architecture,

Power saving GREENnet technology reduces power consumption by up to 40%*, Retail Box, 1 year Limited Warranty.

Product Overview:

The compact 5-Port 10/100 Mbps GREENnet Switch, model TE100-S5, offers plug and play switching reliability and reduced power consumption. Embedded GREENnet technology reduced power consumption by up to 40% out of the box, with no management requirement. This switch offers speeds of up to 200 Mbps per port and total switching capacity of 1 Gbps.

Highlights:

• Plug and play out of the box

• 5 x 10/100 Mbps Ethernet ports

• Up to 40% GREENnet energy savings*

• 1 Gbps switching capacity

Stock Code: 523301

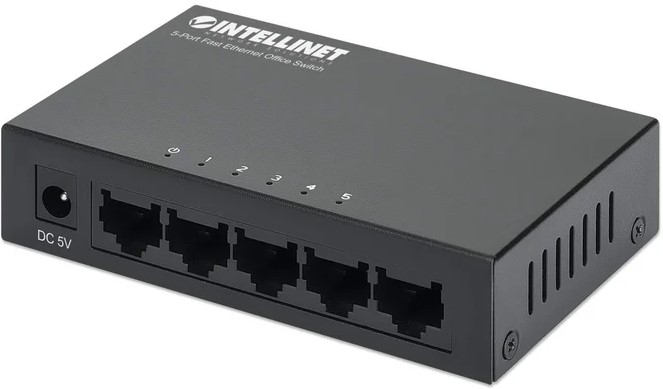

Intellinet 5-Port Fast Ethernet Switch - Metal Case, Desktop, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Intellinet 5 Port 10/100Mbps Desktop Metal case Retail Box 2 year Limited Warranty

Product Overview

Easily add more computers or other Ethernet devices to your network

The INTELLINET NETWORK SOLUTIONS 5-Port Fast Ethernet Office Switch is perfect for the small and medium-size business looking a durable switch that is reliable and easy to install. The metal case is more durable than a plastic enclosure, and is very appropriate for locations with potentially harsh environments, such as a warehouse, factory or wiring closet.

Green Ethernet Technology
More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new energy efficient IEEE 802.3az technology, the Intellinet 10/100 Mbps switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet switch can adjust the level of power output based on the length of the network cable connected to a particular port. With the Intellinet Network Solutions Fast Ethernet Office Switch you will enjoy maximum network performance, but when things slow down it automatically scales back power usage to conserving energy and save money.

Versatile
The Fast Ethernet Office Switch connects up to five computers, servers, printers, switches or any other Ethernet devices at 10 or 100 Mbps over Ethernet cables, and works with any operating system.

Features

Five 10/100 auto-sensing ports - automatically detect optimal network speeds

Supports any combination of 10 Mbps or 100 Mbps network devices

Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length

All RJ-45 ports with Auto-MDIX (auto uplink) support

Supports NWAY auto-negotiation

Store and forward switching architecture

Full/half duplex operation

IEEE 802.3x flow control for full duplex

Zero packet loss back-pressure flow control for half duplex

Packet filtering/forwarding rates: 148.800 pps (100 Mbps), 14.880 pps (10 Mbps)

Supports 1024 MAC address entries

48 kBytes buffer memory

LEDs for power, link/activity, full/half duplex

Compact metal case

Specifications

General

Media support:
- 10Base-T Cat3, 4, 5 UTP/STP RJ-45
- 100Base-TX Cat5 UTP/STP RJ-45

Packet filter/forwarding rate:
- 148.800 pps (100 Mbps)
- 14.880 pps (10 Mbps)

Buffer memory: 48 kBytes

MAC address table: 1024 entries

Switch architecture: store and forward

Certifications: FCC Class B, CE Mark

Stock Code: 560689

Manhattan 8-Port Fast Ethernet Switch - Plastic Case, Desktop, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Manhattan 8-Port Fast Ethernet Switch, Plastic , Retail Box, 2 year Limited Warranty

Product Overview
Easily add more computers or other Ethernet devices to your home network.
The Manhattan 8-Port Fast Ethernet Switch is perfect for the home environment and small-size business looking for a durable switch that is reliable and easy to install.

Versatile
The Fast Ethernet Switch connects up to eight computers, servers, printers, switches or any other Ethernet devices at 10 or 100 Mbps over Ethernet cables, and works with any operating system.

Easy to Install and Maintain
The auto features of this switch make installation plug and play and hassle free. There is no configuration required, and you don’t need to worry about using special cables for uplink ports, since each port is equipped with Auto MDI/MDI-X crossover.

Features
•8-port Fast Ethernet switch expands your network in an instant
•Easy plug-and-play installation — simply power it up and start using it
•Compatible with all Windows and Macintosh systems
•Eight 10/100 auto-sensing ports automatically detect optimal network speeds
•Supports any combination of 10 Mbps or 100 Mbps network devices
•Ultra-compact design
•Fanless design ideal for silent operation
•Store and forward switching architecture

Specifications

Standards
•IEEE 802.3 10Base-T Ethernet
•IEEE 802.3u 100Base-TX Fast Ethernet
•IEEE802.3x Flow Control and Backpressure

General
•Ports: 8 10/100 Mbps NWay switch T ports
•Cable: Cat3, 4, 5 UTP/STP
•Duplex modes: all ports (up to 200 Mbps)
•Uplink: all ports Auto MDI/MDX (Auto Uplink)
•Switch architecture: store and forward switch technology

•Filter/forward rate:
- 10BaseT: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)

•Certifications:
FCC Class B, CE, RoHS

LEDs
•Power
•Link/Activity
•100 Mbps

Power
•External AC adapter: 5 V, 0.6 A

Environmental
•Dimensions: 138 (W) x 50 (D) x 26.5 (H) mm (5.4 x 1.97 x 1.04 in.)
•Operating temperature: 0 – 40˚C (32 – 104˚F)
•Humidity: 10 – 90% (non-condensing)

Package Contents
•8-Port Fast Ethernet Switch
•Power adapter
•User manual

Stock Code: 560672

Manhattan 5-Port Fast Ethernet Switch - Plastic Case, Desktop, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Manhattan 5-Port Fast Ethernet Switch, Retail Box, 2 year Limited Warranty

Product Overview

Easily add more computers or other Ethernet devices to your home network.

The Manhattan 5-Port Fast Ethernet Switch is perfect for the home environment and small-size business looking for a durable switch that is reliable and easy to install.

Versatile
The Fast Ethernet Switch connects up to five computers, servers, printers, switches or any other Ethernet devices at 10 or 100 Mbps over Ethernet cables, and works with any operating system.

Easy to Install and Maintain
The auto features of this switch make installation plug and play and hassle free. There is no configuration required, and you don’t need to worry about using special cables for uplink ports, since each port is equipped with Auto MDI/MDI-X crossover.

Features
• 5-port Fast Ethernet switch expands your network in an instant
• Easy plug-and-play installation — simply power it up and start using it
• Compatible with all Windows and Macintosh systems
• Five 10/100 auto-sensing ports automatically detect optimal network speeds
• Supports any combination of 10 Mbps or 100 Mbps network devices
• Ultra-compact design
• Fanless design ideal for silent operation
• Store and forward switching architecture

Specifications
• Ports: 5 10/100 Mbps NWay switch T ports
• Cable: Cat3, 4, 5 UTP/STP
• Duplex modes: all ports (up to 200 Mbps)
• Uplink: all ports Auto MDI/MDX (Auto Uplink)
• Switch architecture: store and forward switch technology
• External AC adapter: 5 V, 0.6 A

Filter/forward rate:
- 10BaseT: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)

Standards
• IEEE 802.3 10Base-T Ethernet
• IEEE 802.3u 100Base-TX Fast Ethernet
• IEEE802.3x Flow Control and Backpressure

Environmental
• Dimensions: 97 (W) x 45 (L) x 23 (H) mm (3.81 x 1.77 x 0.9 in.)
• Operating temperature: 0 – 40˚C (32 – 104˚F)
• Humidity: 10 – 90% (non-condensing)

Package Contents
• 5-Port Fast Ethernet Switch
• Power adapter
• User manual

Stock Code: 561723

Intellinet 5-Port Fast Ethernet Switch - IEEE 802.3az (Energy Efficient Ethernet) - Plastic Case, Desktop, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Intellinet 5-Port Fast Ethernet Switch - Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Black, Retail Box, 1 year Limited Warranty

Product Overview

The Intellinet 5-Port Fast Ethernet Office Switch is perfect for the small and medium-size business looking for a durable switch that is reliable and easy to install. The metal case is more durable than a plastic enclosure, and is very appropriate for locations with potentially harsh environments, such as a warehouse, factory or wiring closet.

Features

•Compact switch with five Fast Ethernet ports to expand your network in an instant

•Easy plug-and-play installation - simply power it up and start using it

•Green Ethernet power-saving technology deactivates unused ports

•Five 10/100 auto-sensing ports automatically detect optimal network speeds

•Supports any combination of 10 Mbps or 100 Mbps network devices

•Switch fabric of 1.6 Gbps

•Supports 1k MAC address entries with Auto-Learning and Auto-Aging

•Buffer memory of 448 Kbytes

Specifications

•Product Code: 561723

•Description: Intellinet 5-Port Fast Ethernet Switch

•Ports: five 10/100 Mbps RJ45

•Cable: Cat3, 4, 5, 6 UTP/STP

•Duplex modes: all ports (up to 200 Mbps)

•Uplink: all ports Auto MDI/MDX (Auto Uplink)

•Switch architecture: store and forward switch technology

•Forwarding rate: 745K pps

•Buffer memory: 448 Kbytes

•MAC address table: 1,000 entries

•Backplane speed / switch fabric: 1.6 Gbps

•Jumbo frames up to 1.6 kB

•Dimensions (L x W x H): 81 x 48 x 22 mm (3.19 x 1.89 x 0.87 in.)

•Weight: 0.11 kg (0.24 lbs.)

Stock Code: TL-SF1005D

TP Link TL SF1005D 5 Port 10/100Mbps Desktop Switch, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TP Link TL SF1005D 5 Port 10/100Mbps Desktop Switch, Retail Box, 1 year Limited Warranty

Product Overview

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.

Stock Code: TL-SF1005D

TP Link TL SF1005D 5 Port 10/100Mbps Desktop Switch, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TP Link TL SF1005D 5 Port 10/100Mbps Desktop Switch, Retail Box, 1 year Limited Warranty

Product Overview

1 to 21 of 21 items

Page 1

Photographed products shown above are for illustrative purposes only. www.esquireshop.com © 2021
