Stock Code: 461436

Manhattan Universal Sit and Stand Workstation Mount - Single-Monitor Ergonomic Workstation, Gas-Spring Counterbalance, Supports One 13" to 32" Monitor, Retail Box, Limited Lifetime Warranty

Click Here For More Detail

Click Here For a Quick Description

Manhattan Universal Sit/Stand Workstation Mount - Single-Monitor Ergonomic Workstation, Gas-Spring Counterbalance, Supports One 13" to 32" Monitor, Retail Box, Limited Lifetime Warranty

Product Overview

Improve posture and work comfortably while sitting or standing with the Manhattan Universal Sit/Stand Workstation Mount. This desk mount features a full motion system that offers a wide range of movement, allowing perfect customized viewing and working positions.

Features

• Fits most 13'' – 32" LED/LCD monitor screens

• Detachable VESA-plate design for easy installation

• Full-motion mechanism to swivel, tilt and rotate display

• Gas-spring counterbalance to float monitor, creating light-touch adjustment for secure viewing position

• Built-in adjustable spring gauge suits various monitor weights

• Built-in cable-management system

• Foldable keyboard tray

• Secondary storage tray for other desktop items

• Choose between clamp or grommet base, both included as standard

• Three-Year Warranty

Specification

Generals

• For most 13"–32" flat & curved monitors

• Material: aluminum, steel, plastic

• Rated Load: Total, 8 kg (17.6 lbs.); Display & Keyboard, 1 kg (2.2 lbs.)

• VESA support: 75 x 75 and 100 x 100

• Tilt ±15°

• Swivel ±90°

• Rotate ±180°

• Arm extends to 442 mm (17.4 in.)

Product Dimensions

• 1150 (L) x 666 (W) x 1020 (H) [mm]

• 45.28 (L) x 26.22 (W) x 40.16 (H) [in]

Packaging contents

• Universal Sit/Stand Workstation Mount

• Grommet and clamp base

• Installation hardware with instructions

Stock Code: 461597

Mahattan Universal Gas Spring Dual Monitor Mount - Two Gas-Spring Jointed Arms, Supports Two 17" to 32" TVs or Monitors up to 8 kg (17.64 lbs.), Retail Box , 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Mahattan Universal Gas Spring Dual Monitor Mount - Two Gas-Spring Jointed Arms, Supports Two 17" to 32" TVs or Monitors up to 8 kg (17.64 lbs.), Retail Box , 1 year Limited Warranty

Product Overview

The Manhattan Universal Gas Spring Dual Monitor Mount securely supports two 17" to 32" TVs or monitors. Because it uses gas springs to hold your displays, the arms only need the lightest touch to move them to the best viewing angles for your purposes. The mount's high-quality aluminum and steel construction will provide years of reliable service. Ideal for installation on a large desk, the Manhattan Universal Gas Spring Dual Monitor Mount lets you take advantage of the extra range of movement so you can have more space to get work done.

Highlights

• Supports two 17" to 32" monitors (recommended)
• Gas spring provides light-touch adjustment of viewing height
• Built-in tension adjustment

FEATURES

• Supports two 17" to 32" monitors (recommended)
• Gas spring provides light-touch adjustment of viewing height
• Built-in tension adjustment
• Desktop clamp or hole clamp (both supplied)

Specifications

• Stock Code:461597
• Description:Mahattan Universal Gas Spring Dual Monitor Mount
General
• Fits most 17" – 32" flat and curved monitors
• Material: aluminum, steel, plastic
• Supports two monitors up to 8 kg (17.64 lbs.) each
• VESA support 75 x 75 and 100 x 100
• Tilt: ±35°
• Swivel: ±90°
• Rotate: ±180°

• Product Dimensions (Maximum)
• 534 (L) x 114 (W) x 745 (H) [mm]
• 21.02 (L) x 4.49 (W) x 29.33 (H) [in]

Packaging Contents
Universal Gas Spring Dual Monitor Mount
Installation hardware with instructions

Stock Code: 461566

Manhattan Universal Four Monitor Mount with Double-Link Swing Arms - Holds Four 13" to 32" LCD Monitors up to 8 kg (17 lbs.), Black, Retail Box, Limited Lifetime Warranty

Click Here For More Detail

Click Here For a Quick Description

Manhattan Universal Four Monitor Mount with Double-Link Swing Arms - Holds Four 13" to 32" LCD Monitors up to 8 kg (17 lbs.), Black, Retail Box, Limited Lifetime Warranty

Product Overview:
Manage the desktop. Maximize productivity.
LCD-monitor installation above the desk helps maximize the effectiveness of a potential workspace. The Manhattan Universal Four Monitor Mount with Double-Link Swing Arms improves organization on the desktop, making it easier to get work done on the computer.

Constructed from durable die-cast metal, this four monitor mount features a sturdy clamp that allows for quick, easy and secure mounting without the need to drill holes into desks or countertops. Its fully adjustable tilt, rotate, side-to-side, height and tension settings create the perfect position to comfortably increase productivity. Such adjustment capabilities can even help reduce eye fatigue or neck and back strain. In addition, the mount pole offers easy monitor rotation to allow others to view presentations and multimedia productions from almost any direction.

Features:
• Meets VESA standards — securely holds four LCD monitors from 13” to 32"
• Positions monitors above the desktop to increase work space, improve visibility and minimize clutter
• Double-link swing arms with separate ±45° tilt, ±180° rotation and height adjustments
• Steel pole with heavy-duty clamp mount
• Removeable VESA plates, making monitor attachment faster and easier
• Easy adjustment of monitor position
• Ideal for office, studio, IT network and security applications
• Installs easily to any desktop or other surface — no drilling required

Specifications
• Product Code: 461566
• Description: Manhattan Universal Four Monitor Mount with Double-Link Swing Arms

General
• Fits 75 x 75 mm / 100 x 100 mm VESA-compliant monitors
• Monitor weight capacity: up to 8 kg (17 lbs.) each
• Installs on horizontal surfaces up to 10 – 85 mm (3.3 in.) thick

Dimensions
• Height (pole): 883 mm (34.8 in.)
• Arm length (radius): 399 mm (15.7 in.)
• Arm width (extended): 798 mm (31.4 in.)

Package Contents
• Universal Four Monitor Mount with Double-Link Swing Arms
• Cable management clips and trim caps
• C-clamp with thumb screws
• Monitor mounting and assembly screws
• Installation hardware with instructions and hex tool

Stock Code: 420808

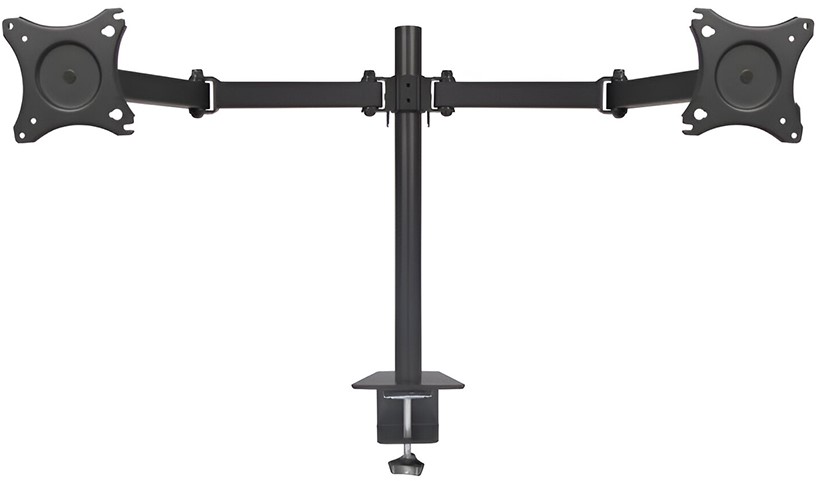

Manhattan Dual LCD Monitor Mount Bracket-Supports Two monitors, Double-Link Swing Arms,Fits Two LCD monitors up to 19 inch and 6kg each(12kg total), Retail Box , 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Manhattan LCD Pole support 2 monitor double swing arm with heavy duty clamp Retail Box 1 year Limited Warranty
Supports two monitors, double-link swing arms

Color: Black

Product Overview

LCD monitor arms help utilize work space, improve ergonomics and share views.

Improve Productivity and Reduce Strain
The MANHATTAN LCD Monitor Pole with Double-Link Swing Arm provides a secure and elevated position for two flat-screen monitors to help free up valuable desk and work space. Its fully adjustable tilt, rotate, side-to-side, height and tension settings enable a comfortable and productive viewing position that helps reduce eye fatigue and neck and back strain. LCD monitors can be easily rotated around the pole to allow others to view presentations and other multimedia displays from almost any direction.

Rugged Construction and Easy Installation
Durable die-cast aluminum construction and a sturdy clamp provide a quick, easy and secure mount to a desktop or other horizontal surface. VESA compliant and ready to install with included hardware, there's no need to drill holes into desks or countertops.

Lifetime Warranty
Strict manufacturing standards ensure the highest quality in all MANHATTAN products. All items carry a full Lifetime Warranty — the strongest quality commitment anyone can make.

Securely holds two LCD monitors above the desktop to increase work space, improve visibility and minimize clutter

36" double-link swing arms optimize ergonomics and monitor views with separate 180° tilt, 180° rotate, side-to-side, height and tension adjustments

Die-cast aluminum pole with heavy-duty clamp mounts to desktop or other surface

Easy installation ideal for office, studio, IT network and security applications — no drilling required

Meets VESA standards — fits monitors up to 19" and 13 pounds each

General

Fits 75 x 75 mm / 100 x 100 mm VESA-compliant monitors

Monitor weight capacity: up to 6 kg (13 lbs.) each; 12 kg (26 lbs.) total

Installs on horizontal surfaces up to 9 cm (3.5 in.) thick

Dimensions

Height (pole): 45.7 cm (18 in.)

Diameter (pole): 11.5 cm (4.5 in.)

Arm length (radius): 39 cm (15.5 in.)

Arm width (extended): 92 cm (36 in.)

Weight: 5.6 kg (13 lbs.)

Package Contents

LCD Monitor Pole with Double-Link Swing Arm

Cable management clips and trim caps

C-clamp with thumb screws (2) and mounting screws (2)

Monitor mounting screws (8)

Installation hardware with instructions and hex tool

Stock Code: 422840

Manhattan LCD Wall Mount - Fixed mount, Supports one monitor up to 22" and 15 kg (33 lbs.) , Retail Box , 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Manhattan LCD Wall Mount - Fixed mount, Supports one monitor up to 22" and 15 kg (33 lbs.) , Retail Box , 1 year Limited Warranty

Product Overview

The Manhattan LCD Wall Mount provides a secure and elevated position for a single flat-panel display to help keep valuable desk and work space free and uncluttered. Its adjustable tilt, rotate, side-to-side settings enable a comfortable and productive viewing position. Durable die-cast aluminum construction and two-piece bracket provide a quick, easy and secure mount to most vertical surfaces. This mount is VESA compliant and ready to install with included hardware.

Highlights

FEATURES

• Securely holds one LCD monitor on wall to improve views, increase work space and minimize clutter
• Optimizes views with ±90° tilt, ±90° swivel and 360° rotation
• Two-piece bracket with heavy-duty steel construction easily mounts to most vertical surfaces
• Low-profile installation ideal for home, office and commercial applications
• Meets VESA standards — fits monitors from 13" to 22" up to 12 kg (26 lbs.)

Specifications

• Stock Code:422840
• Description:Manhattan LCD Wall Mount
General
• Fits 75 x 75 mm / 100 x 100 mm VESA-compliant monitors up to 22"
• Monitor weight capacity: up to 12 kg (26 lbs.)
• Installs approximately 13.5 cm (5 in.) from most vertical surfaces

Dimensions
• Product dimensions: 135 (L) x 120 (W) x 120 (H) mm / 5.31 (L) x 4.72 (W) x 4.72 (H) in.
• Arm length: 10 cm (4 in.)
• Weight: 0.7 kg (1.5 lbs.)

Package Contents
LCD Wall Mount
Installation hardware with instructions
