1 to 22 of 22 items

Page 1

Stock Code: SOLSIRPV6MMBLACK

Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Black 100 Metre Roll- Designed For Use To Provide Optimal Cable Connection Between Solar Panel Cells And AC/DC Inverter Or The Mains DC Cable, Flexible Aluminium Conductor , UV Protection Insulation, AC Voltage Rating 600/1000VAC ,DC Voltage Rating 800/1500VDC, Sold As 100mtres Per Roll Colour Black, Retail Box, No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Black 100 Metre Roll is designed for the interconnection of various elements of photovoltaic systems and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800VDC. Suitable for fixed installation outside and inside without protection or inside pipes, ducts or similar closed systems High resistance against ozone, U.V. rays, oils and moisture. and also for connection to the AC/DC inverter. Suitable for use at an ambient temperature up to 90°C (120°C overload) The estimated lifetime of these cables is at least 7 years.

Specifications
• Stock Code SOLSIRPV6MMBLACK
• Description Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Black 100 Metre Roll
• Inner Conductor: Flexible Aluminium Conductor
• Photovoltaic Power Cables, Halogen Free, Flame Retardant and High Temperature Resistance
• Used As Photovoltaic Cable Between Solar Modules And AC/DC Inverters
• Photovoltaic System With A Rated Value U0 = 1.5k VDC
• Maximum Permitted Voltage U0 =1800VDC
• Test Voltage: 6.5 kV AC 50 Hz
• Cross Sectional Area 6mm²
• Rated Current: 70 A
• Working Voltage: 0.6/1.0kV AC (0.8/1.5kV DC)
• Max Voltage: 1.2kV AC (1.8kV DC)
• Bending Radius 4 x Diameter Of Cable
• Storage/Operating Temperature: -40°C to +90°C*
• Minimum Installation Temperature: -5°C
• Colour Black

Stock Code: SOLSIRPV6MMRED

Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Red 100 Metre Roll- Designed For Use To Provide Optimal Cable Connection Between Solar Panel Cells And AC/DC Inverter Or The Mains DC Cable, Flexible Aluminium Conductor , UV Protection Insulation, AC Voltage Rating 600/1000VAC ,DC Voltage Rating 800/1500VDC, Sold As 100mtres Per Roll Colour Red, Retail Box, No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Red 100 Metre Roll is designed for the interconnection of various elements of photovoltaic systems and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800VDC. Suitable for fixed installation outside and inside without protection or inside pipes, ducts or similar closed systems High resistance against ozone, U.V. rays, oils and moisture. and also for connection to the AC/DC inverter. Suitable for use at an ambient temperature up to 90°C (120°C overload) The estimated lifetime of these cables is at least 7 years.

Specifications
• Stock Code SOLSIRPV6MMRED
• Description Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Red 100 Metre Roll
• Inner Conductor: Flexible Aluminium Conductor
• Photovoltaic Power Cables, Halogen Free, Flame Retardant and High Temperature Resistance
• Used As Photovoltaic Cable Between Solar Modules And AC/DC Inverters
• Photovoltaic System With A Rated Value U0 = 1.5k VDC
• Maximum Permitted Voltage U0 =1800VDC
• Test Voltage: 6.5 kV AC 50 Hz
• Cross Sectional Area 6mm²
• Rated Current: 70 A
• Working Voltage: 0.6/1.0kV AC (0.8/1.5kV DC)
• Max Voltage: 1.2kV AC (1.8kV DC)
• Bending Radius 4 x Diameter Of Cable
• Storage/Operating Temperature: -40°C to +90°C*
• Minimum Installation Temperature: -5°C
• Colour Red

Stock Code: SOLTYQK70

Solarix Manual Hydraulic Lug And Wire Crimper Tool - Non Slip Ergonomic Handle Design, Made From High Quality Steel Material, Includes 16pcs Moulds (8 Pairs Of Dies) and Storage Case, Used For Battery, Welding Cables And Electrical Cables, Easy Carrying Case Included, Colour Yellow and Black , Retail Box, No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix Manual Hydraulic Lug and Wire Crimper Tool is an efficient tool for crimping lugs, terminals, or conductors on batteries, welding cables, and electrical cables. This hydraulic wire crimper, with a 10mm stroke and a crimping force of 6 tons, is made of high-quality steel material and features a non-slip ergonomic handle design that is comfortable and easy to hold, providing convenience and security during crimping operations. The kit includes 16 moulds (8 pairs of dies) that allow you to crimp wires and lug connectors on a wide range of wire sizes making it much easier to use than a pair of hand crimpers , saving you time and providing the convenience you need to meet your basic demands. It is ideal for installations of solar inverters and batteries, as well as small DIY electrical projects.

Highlights
• Manual Hydraulic Lug And Wire Crimper Tool
• Non Slip Ergonomic Handle Design
• Made From High Quality Steel Material
• 16pcs Moulds (8 Pairs of Dies ) 4, 6, 10, 16, 25, 35, 50, 70mm²
• Stroke Is 10mm, And The Crimping Force Is 6 Tons.
• Easy Carrying Case Included
• Ideal For Installations Of Solar Inverters And Batteries

Specifications
• Stock Code SOLTYQK70
• Description Solarix Manual Hydraulic Lug And Wire Crimper Tool
• Product Type Hydraulic Pressure Wire Crimping Tool
• Crimping Force 6 Tons
• Crimping Range Cu 4-70mm²
• Crimping Type Hexagon Crimping
• Stroke 10mm
• Size 305x100x55mm
• Weight Approx.2.8kg
• Package Easy Carry Case

Stock Code: SOL48VBATTCAB

Solarix 48V Battery Connector Cable Kit- Suitable To Use With All 48V Inverters Up To 8000W Rating, Kit Includes 1x 160A Fuse, 1x Battery Fuse Holder, 1x 1 Metre 50mm Cable (Red), 1x 0.3 Metre 50mm Cable (Red), 3 x 0.2 Metre 50mm Cable (Black), 1x 1.2 Metre 50mm Cable (Black), Convenient Carry Bag, Retail Box , Retail Box , 6 Months Warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview

The Solarix Solarwize Branded 48V Battery Connector Cable Kit set is everything you need to safely connect batteries to an Inverter system and suitable to use with all 48V Inverters up to 8000w rating. This kit Includes 1x 160A Fuse, 1x Battery Fuse Holder, 1x 1 Metre 50mm Cable (Red), 1x 0.3 Metre 50mm Cable (Red), 3 x 0.2 Metre 50mm Cable (Black), 1x 1.2 Metre 50mm Cable (Black), Convenient Carry Bag. You will need one cable kit per bank of batteries. The limit of how many batteries you can connect on one cable pack will depend on the battery capacity.

Highlights

• 48V Battery Connector Cable Kit Set

• Everything Included To Safely Connect Batteries To An Inverter System

• Suitable To Use With All 48V Inverters Up To 8000w Rating

• Cable Material is CCA (50% Copper and 50% Aluminum)

• Convenient Carry Bag

Specifications

• Stock Code SOL48VBATTCAB

• Description Solarix 48V Battery Connector Cable Kit

• Suitable To Use With All 48V Inverters Up To 8000W Rating

• Cable Material is CCA (50% Copper and 50% Aluminum)

• 1x 160A Fuse,

• 1x Battery Fuse Holder

• 1x 1 Metre 50mm Cable (Red)

• 1x 0.3 Metre 50mm Cable (Red)

• 3x 0.2 Metre 50mm Cable (Black)

• 1x 1.2 Metre 50mm Cable (Black)

• Convenient Carry Bag

Stock Code: SOL24VBATTCAB

Solarix 24V Battery Connector Cable Kit- Suitable To Use With All 24V Inverters Up To 4000W Rating, Kit Includes 1x 160A Fuse, 1x Battery Fuse Holder, 1x 1 Metre 50mm Cable (Red), 1x 0.3 Metre 50mm Cable (Red), 1x 0.2 Metre 50mm Cable (Black), 1x 1.2 Metre 50mm Cable (Black),Convenient Carry Bag, Retail Box , 6 Months Warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview

The Solarix Solarwize branded 24V Battery Connector Cable Kit is everything you need to safely connect batteries to an Inverter system and suitable to use with all 24V Inverters up to 4000w rating. This kit includes 1x 160A Fuse, 1x Battery Fuse Holder, 1x 1 Metre 50mm Cable (Red), 1x 0.3 Metre 50mm Cable (Red), 1x 0.2 Metre 50mm Cable (Black), 1x 1.2 Metre 50mm Cable (Black),Convenient Carry Bag. You will need one cable kit per bank of batteries. The limit of how many batteries you can connect on one cable pack will depend on the battery capacity.

Highlights

• 24V Battery Connector Cable Kit Set

• Everything Included To Safely Connect Batteries To An Inverter System

• Suitable To Use With All 24V Inverters Up To 4000w Rating

• Cable Material is CCA (50% Copper and 50% Aluminum)

• Convenient Carry Bag

Specifications

• Stock Code SOL24VBATTCAB

• Description Solarix 24V Battery Connector Cable Kit

• Suitable To Use With All 24V Inverters Up To 4000W Rating

• Cable Material is CCA (50% Copper and 50% Aluminum)

• 1x 160A Fuse

• 1x Battery Fuse Holder

• 1x 1 Metre 50mm Cable (Red)

• 1x 0.3 Metre 50mm Cable (Red)

• 1x 0.2 Metre 50mm Cable (Black)

• 1x 1.2 Metre 50mm Cable (Black)

• Convenient Carry Bag

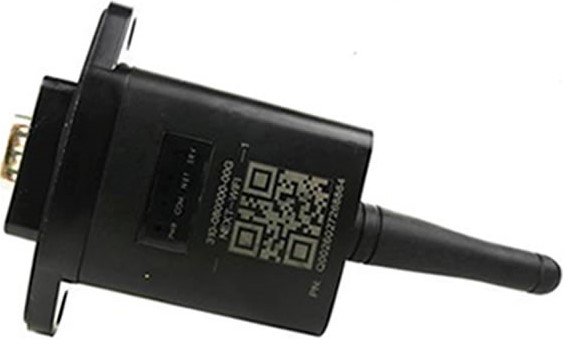

Stock Code: SOLWIFIDG01

Solarix Wifi Module For Solarix SUN 6.5KVA Inverters- Includes RJ45 to R232 Cable, Wifi Protocol 802.11 b/g/n, WEP, WPA/WPA2 Encryption, Wifi Frequency: 2.4GHz, Wireless Gain: 2.5dBi, Wifi Distance: Up 30 meters (open space), RS232 Communication Interface, Downloadable APP Available For Both IOS And Android Based Devices, Unit Is Designed To Work With The Solarix Sun 6.5KVA Inverters, Colour Black, Retail Box, 1 Year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Solarix Wifi Module For Solarix Sun Inverters- Includes RJ45 to R232 Cable, Wifi Protocol 802.11 b/g/n, WEP, WPA/WPA2 Encryption, Wifi Frequency: 2.4GHz, Wireless Gain: 2.5dBi, Wifi Distance: Up 30 meters (open space), RS232 Communication Interface, Downloadable APP Available For Both IOS And Android Based Devices, Unit Is Designed To Work With The Solarix Sun 6.5KVA Inverters, Colour Black, Retail Box, 1 Year Limited Warranty

Product Overview
The Solarix Wifi Module For Solarix Sun Inverters enable wireless communication between the Solarix inverters and the monitoring platform. Users have complete and remote monitoring and controlling experience for inverters when combining WiFi module with the downloadable APP that is available for both iOS and Android based devices for up to 30 metres. Includes RJ45 to R232 Cable. Unit is designed to work with the Solarix Sun 6.5KVA Inverters. User Leaflet Is Included In The Box

Specifications
• Stock Code SOLWIFIDG01
• Description Solarix Wifi Module For Solarix Sun Inverters
• RS232 Communication Interface
• Includes RJ45 to R232 Cable
• Designed To Work With The Solarix Sun 6.5KVA Inverters
• Wifi Protocol 802.11 b/g/n
• WEP, WPA/WPA2 Encryption
• Wifi Frequency: 2.4GHz
• Wireless Gain: 2.5dBi
• Wifi Distance: Up 30 meters (open space)
• External Power Input: 5V-12V
• Power Consumption: 2 watt (max.)
• User Leaflet Is Included In The Box
• Operating Temperature: -20°C ~ 75°C
• Operating Humidity: 0 ~ 95%
• Storage Temperature: -30°C ~ 80°C
• Dimension, D x W x H (mm): 28 x 46 x 172
• Net Weight (g): 120

Stock Code: SOLSSDCS001

Solarix DC Surge Protector Device - Designed To Protect And Minimize The Potential Impact Of Direct And Indirect Lightning Events on Solar Panels PV Installations, Should Be Installed On The DC Side Of The PV System, Before The Inverter, Widely Used In PV DC Combiner Box, Inverter, Controller And PV DC Cabinet, Please Do Not Use Install It With AC Circuits, Ensure Proper Earthing When Installing, Din Rail Mount Installation, Retail Box, No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix DC Surge Protector Device is designed to protect and minimize the potential impact of direct and indirect lightning events on Solar Panels PV Installations. These units must be installed in parallel on the DC networks to be protected and provide protection. Its installed location are recommended at both ends of the DC power supply line ( solar panel side and inverter/converter side), especially if the line routing is external and long. , It is widely used widely used in PV DC Combiner Boxes, Inverter, Controller and PV DC cabinets, Suitable For Use In All Photovoltaic Systems. Din Rail Mount Installation.

Specifications
• Stock Code SOLSSDCS001
• Description Solarix DC Surge Protector Device
• Product Type DC Surge Protection Devices (SPD) On Solar Panels PV Installations
• Protect And Minimize The Potential Impact Of Direct And Indirect Lightning Events
• Should Be Installed On The DC Side Of The PV System
• Classified Test Type II
• Response Time Of Less Than 25ns (Nano Second)
• Nominal Discharge Current (In):20KA
• Maximum Continuous Operating Voltage (Uc) 1000VDC
• Maximum Discharge Current (Imax.):40KA
• Maximum Voltage Protection Level( Up): ≤3.8KV
• Compatible With DC Circuits Only
• Please Do Not Use Install It With AC Circuits
• Ensure Proper Earthing When Installing
• Din Rail Mount Installation

Stock Code: SOLSSACS001

Solarix AC Surge Protector Device - Single Phase, Suitable For 50Hz And 60Hz AC Power Supply System, Protects Your Appliances, Electronics, AC Circuits As Well As Solar Inverters From High Voltages And Surges, Compatible with AC circuits Only. Please Do Not Use Install It With DC Circuits, Ensure Proper Earthing When Installing, Rail Mount Installation, Retail Box, No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix Single Phase AC Surge Protector Device is compatible with AC Circuits Only. It is designed to protects your appliances, electronics, AC circuits as well as Solar Inverter from overvoltage and surges. It uses earthing to redirect current to the ground and can be used in any type of AC circuit. The Solarix AC Surge Protector Device requires proper earthing and grounding to function. It protects your electrical appliances from damage during real-time voltage fluctuations by redirecting excess voltage/current to the ground via earthing. It performs admirably in the presence of excess voltage supply, with a response time of less than 25ns (Nano second) and can be used in any type of AC circuit only. Please Do not use install it with DC Circuits.

Specifications
• Stock Code SOLSSACS001
• Solarix Single Phase AC Surge Protector Device
• Product Type AC Surge Protection Device
• 2 x Poles (1 Phase + 1 Neutral)
• Protection Type Over-Voltage (AC)
• Suitable For 50Hz And 60Hz AC Power Supply System
• Prevents Solar Inverters And Appliances Against High Voltages and Surges
• Response Time Of Less Than 25ns (Nano Second)
• Requires Proper Earthing and Grounding When Installing
• Rated Operating Voltage Un(V) 220V
• Nominal Discharge Current (In):20KA
• Maximum Continuous Operating Voltage (Uc) 385VAC
• Maximum Discharge Current (Imax.):40KA
• Maximum Voltage Protection Level( Up): ≤1.8KV
• Compatible With AC Circuits Only
• Please Do not use install it with DC Circuits
• Rail Mount Installation
• Device Requires Proper Earthing And Grounding To Function

Stock Code: SOLSSAVS050

Solarix Auto Voltage Protection Switch- Din Rail Mount, Passing Current Maximum 50A , Rated AC Voltage 230VAC, Frequency 50Hz, Over-voltage Cut-off Value 275VAC, Under-Voltage Cut-Off Value175VAC, Recovery Time <30s, Automatic Recovery Function , Over and Under Voltage Protection, Single Phase Installation, Colour White, Retail Box, No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix Automatic Voltage Protection Switch is designed for single phase installation and mainly used for the protection of over-voltage, under-voltage, or over-current in the distribution line of residential household boxes or the protection of single-phase power equipment. Its main feature is overvoltage or Under voltage in the line, overcurrent condition, the product can cut off the power supply instantaneously, protect the electrical equipment from being damaged; when the line voltage returns to normal, the protector can automatically turn on the power supply normally. The automatic overvoltage protection device is suitable for single-phase AC voltage 230V, 50/60Hz.

Specification
• Stock Code SOLSSAVS050
• Description Solarix Auto Voltage Protection Switch
• Product Type 35mm Din Rail Mount Automatic Voltage Protection Switch
• Passing Current Maximum 50A
• Rated AC Voltage 230VAC, Frequency 50Hz
• Over-voltage Cut-off Value 275VAC
• Under-Voltage Cut-Off Value175VAC
• Recovery Time <30s
• Automatic Recovery Function
• Over and Under Voltage Protection
• Single Phase Installation
• Colour White

Stock Code: SOLLUG3510CPNI

Solarix Non Insulated Copper Battery Cable Lug 35 x 10mm Pack of 10 - For Use With Cable Size 35mm, Eyelet Size 10mm, Used To Terminate Cable, Butted Seam To Ensure Smooth Installation Onto Cable, Works With Any Standard Cable Crimping Tools, Retail Box, No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix Non Insulated Copper Battery Cable Lug 35 x 10mm is designed for terminating and connecting to a 35mm battery cable to the device or isolator with 10mm Eyelet stud. The Butted Seam ensures a smooth Installation onto Cable, Works With Any Standard Cable Crimping Tools. Sold As A Pack Of 10

Specifications
• Stock Code SOLLUG3510CPNI
• Description Solarix Non Insulated Copper Battery Cable Lug 35 x 10mm Pack Of 10
• Product Type Copper Lug 35mm Cable X 10mm Eyelet Stud Size Non Insulated
• Recommended Cable Size 35mm
• Eyelet Stud Size 10mm
• Used To Terminate Cable
• Connect to Lead Acid or Gel/AGM Battery Terminals
• Butted Seam To Ensure Smooth Installation Onto Cable
• Works With Any Standard Cable Crimping Tools
• Sold As A Pack Of 10

Stock Code: SOLTRK3M10040W

Solarix PVC Trunking 3 Metre Length 100mm X 40mm White- Used To Protect Cables And Wiring Which Hasn't Been Installed Within The Wall, Provides A Clean Appearance To Cabling Installations, Ideal For Use In Residential, Commercial Or Industrial Construction, Colour White, Retail Box, No Warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix PVC Trunking 3 Metre 100mm X 40mm allows for neater cable installation which would otherwise be running loosely around floors and walls, causing an untidy view and a possible tripping hazard. If cables need to replaced or re-wired, trunking will make the job simpler due to the easy access of the relevant wire. The robust trunking also serves as a protector from cables being damaged by falling object or being trodden on. Ideal for use in residential, commercial or industrial construction. Non Conductive and are resistant to a wide range of chemicals such as acids, alkaline and salt solutions. Quick and easy installation

Specifications
• Stock Code SOLTRK3M10040W
• Description Solarix PVC Trunking 3 Metre 100mm X 40mm White
• Product Length 3 Metre
• Diameter: Width 100mm X Height 40mm
• Trunking Type White PVC Plastic Tubing With Lid
• Material High Quality PVC
• PVC Trunking Is Ideal For Surface Wiring In Domestic and Commercial Installations
• Colour White

Stock Code: SOLEARTHSPIKE

Solarix Copper Cladded 120mm Earth Spike with Dual Nuts and Dual Washers-Rust resistant, Easy installation, Allow For A Good Electrical Connection With The HT Cables, Retail Box , No warranty

Click Here For More Detail

Click Here For a Quick Description

Solarix Copper Cladded 120mm Earth Spike with Dual Nuts and Dual Washers-Rust resistant, Easy installation, Allow For A Good Electrical Connection With The HT Cables, Retail Box , No warranty

Product Overview
The Solarix Copper Cladded 120mm Earth Spike with Dual Nuts and Dual Washers is ideal for earthing Solar PV Panels as well as electric fences that allow for a good electrical connection with the HT cables to make it safe and compliant with regulations. A minimum of 3 earth spikes must be knock into the ground close to the roof where Solar PV panels or close to the electric fence is installed at a minimum of 1.5 m apart.

Must Be Installed By A Qualified Electrician Or Electrical Contractor

Highlights
• Copper Cladded 120mm (1.2m) Earth Spike with Dual Nuts and Dual Washers
• Rust resistant
• Easy installation
• Dual Nuts And Dual Washers allow for a good electrical connection with the HT cables

Specifications
• Stock Code SOLEARTHSPIKE
• Description Solarix Copper Cladded 120mm Earth Spike
• Product Type Earth Spike with Dual Nuts and Dual Washers
• Size: 10mm x 1.2m
• Finish: Copper Cladded
• Minimum of three spikes required per system.

What You Get
1 x Solarix Copper Cladded Earth Spike
2x Nuts and 2x Washers

Stock Code: SOLLUG258CPNI

Solarix Non Insulated Copper Battery Cable Lug 25 x 8mm Pack of 10- For Use With Cable Size 25mm, Eyelet Size 8mm, Used To Terminate Cable, Butted Seam To Ensure Smooth Installation Onto Cable, Works With Any Standard Cable Crimping Tools, Retail Box, No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix Non Insulated Copper Battery Cable Lug 25 x 8mm is designed for terminating and connecting to a 25mm battery cable to the device or isolator with 8mm Eyelet stud. The Butted Seam ensures a smooth Installation onto Cable, Works With Any Standard Cable Crimping Tools. Sold As A Pack Of 10

Specifications
• Stock Code SOLLUG258CPNII
• Description Solarix Non Insulated Copper Battery Cable Lug 25 x 8mm Pack Of 10
• Product Type Copper Lug 25mm Cable X 8mm Eyelet Stud Size Non Insulated
• Recommended Cable Size 25mm
• Eyelet Stud Size 8mm
• Used To Terminate Cable
• Connect to Lead Acid or Gel/AGM Battery Terminals
• Butted Seam To Ensure Smooth Installation Onto Cable
• Works With Any Standard Cable Crimping Tools
• Sold As A Pack Of 10

Stock Code: SOLPAMC002

Solarix MC4 PV In Line Fuse Holder Cable Connector Includes 30A 1000VDC Fuse – Sold As A Single Unit Compatible With MC4 Connectors, Suitable To Solar Cable Sized 2.5mm², 4mm² And 6mm², Quick And Reliable Connection With Solar Cables For Photovoltaic Systems, Includes 30A Rated Current 1000VDC Rated Voltage Fuse, IP67/8 Ingress Protection, Copper and Tin Plated Contact Material. Colour Black, OEM Pack, No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix MC4 PV In Line Fuse Holder Cable Connector with Included 30A 1000VDC Fuse is designed to be a practical connector that enables quick and reliable connection with Solar Cables for Photovoltaic Systems and switch box to prevent the reversal of current, it is compatible with MC4 Connectors. Featuring a Male MC4 connector on one side and a Female MC4 connector on the other, this fuse holder seamlessly integrates into your existing positive string of on a solar array panel, providing a secure and reliable connection without the need for additional adapters. This proactive approach protects not only your solar panels but also the connected equipment, ensuring long-term performance and reliability. This MC4 connector is rated as IP67/8 IP Ingress Protection with Copper and Tin Plated Contact Material, Sold as a Single Unit.

Specifications
• Stock Code SOLPAMC002
• Description Solarix MC4 PV In Line Fuse Holder Cable Connector
• Includes 30A 1000VDC Fuse
• Product Type Male MC4 connector on one side and a Female MC4 connector on the other
• MC4 PV In Line Fuse Holder Cable Connector
• Compatible With MC4 Connectors
• Suitable To Solar Cable Sized 2.5mm², 4mm² And 6mm²
• Quick And Reliable Connection With Solar Cables For Photovoltaic Systems
• Male MC4 connector on one side and a Female MC4 connector on the other
• Insulation Material: PPO
• Rated Voltage: 1000VDC
• Rated Current: 30A
• PV Fuse: 10x38mm
• Degree Of Protection: IP67/8
• Copper and Tin Plated Contact Material
• Each end nuts comes with rubber bushings for air tightening
• Includes 1 X 30A 1000VDC 10x38mm Fuse
• Colour Black
• Sold as a Single unit

Stock Code: SOLFC20MM5MBLK

Solarix Flexible Conduit 20mm Diameter PVC Black 5 Metre-Flexible Split Cable Sleeving Conduit, Used Electrical Wire Insulation, Inner Diameter Is 20mm, Length 5 Metres , Colour Black, Retail Box , No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix Flexible Split Cable Sleeving Conduit 20mm Diameter PVC Black 5 Metre is ideal for the protection and structure of running electrical wiring through machinery or buildings, This Flexible Split Cable Sleeving Conduit allows the conduit to be easily installed on pre-installed wiring. Can also be used by users who are looking to enclose cables in a tidy fashion or needing to repair a damaged conduit. Can be used to wrap electrical wires in Home, Motor Vehicles, Ideal For Inverters And Battery Installations .

Typical Applications
• Inverters and Battery Installations
• Cable assembling
• Under floor wiring
• Cable management and tidying
• Great protection for wiring looms and harnesses
• Fast Protection On Loose Cables

Specifications
• Stock Code SOLFC20MM5MBLK
• Description Solarix Flexible Conduit 20mm Diameter PVC Black 5 Metre
• Product type Flexible Split Cable Sleeving Conduit Easily Installed On Pre-Installed Wiring
• Inner Diameter Is 20mm
• Cable Length is 5 Metres
• Material High Quality PVC
• Colour Black

Stock Code: SOLTRK3M4040W

Solarix PVC Trunking 3 Metre Lenght 40mm X 40mm White-Used To Protect Cables And Wiring Which Hasn't Been Installed Within The Wall, Provides A Clean Appearance To Cabling Installations, Ideal For Use In Residential, Commercial Or Industrial Construction, Colour White, Retail Box, No Warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix PVC Trunking 3 Metre 40mm X 40mm allows for neater cable installation which would otherwise be running loosely around floors and walls, causing an untidy view and a possible tripping hazard. If cables need to replaced or re-wired, trunking will make the job simpler due to the easy access of the relevant wire. The robust trunking also serves as a protector from cables being damaged by falling object or being trodden on. Ideal for use in residential, commercial or industrial construction. Non Conductive and are resistant to a wide range of chemicals such as acids, alkaline and salt solutions. Quick and easy installation

Specifications
• Stock Code SOLTRK3M4040W
• Description Solarix PVC Trunking 3 Metre 40mm X 40mm White
• Product Length 3 Metre
• Diameter: Width 40mm X Height 40mm
• Trunking Type White PVC Plastic Tubing With Lid
• Material High Quality PVC
• PVC Trunking Is Ideal For Surface Wiring In Domestic and Commercial Installations
• Colour White

Stock Code: SOLSIBRHBW01

Solarix IBR Hanger Bolt Screw For D-RAIL 8mm- Ideal For IBR On Wood Trusses, Includes 1 x Stainless Steel Bolt, 1 x Rubber Washer, 3 x Nuts, 8mm Hexagon Bolt Screw Head, Retail Box, No warranty

Click Here For More Detail

Click Here For a Quick Description

Solarix IBR Hanger Bolt Screw For D-RAIL 8mm- Ideal For IBR On Wood Trusses, Includes 1 x Stainless Steel Bolt, 1 x Rubber Washer, 3 x Nuts, 8mm Hexagon Bolt Screw Head, Retail Box, No warranty

Product Overview:
The Solarix IBR Hanger Bolt Screw for D-RAIL 8mm is a robust and reliable solution designed to secure solar mounting systems on wood trusses. Meticulously crafted from high-quality stainless steel, this product ensures durability and longevity in various environmental conditions. The 8mm Hexagon Bolt Screw Head provides a secure and stable foundation for solar installations. Specifically engineered for use with IBR roof sheeting profiles on wood trusses, the Solarix IBR Hanger Bolt is an excellent choice for solar panel installations on wooden structures, offering a dependable anchor point for your solar mounting system. Crafted from premium, corrosion-resistant stainless steel capable of withstanding challenging weather conditions, this hanger bolt ensures the longevity and stability of your solar installation. The kit includes 1x Bolt, 1x Rubber Washer, and 3x Nuts, providing all the essential hardware for a secure and efficient installation, further enhancing the reliability of your solar panel setup over the long term.

Highlights
• Stock Code SOLSIBRHBW01
• Description Solarix IBR Hanger Bolt Screw For D-RAIL 8mm-Wood
• Product Type Ideal For IBR On Wood Trusses Solar Panel Installations
• Corrosion-Resistant IBR Hanger Bolt
• Crafted From Premium Stainless Steel
• Comprehensive Kit 1x Bolt, 1x Rubber Washer, and 3x Nuts
• 8mm Hexagon Bolt Screw Head
• Durable and Weather-Resistant
• Built To Withstand The Rigors Of Outdoor Use
• Providing A Dependable Anchor Point For Your Solar Mounting System

Stock Code: SOLSIBRHBS01

Solarix IBR Hanger Bolt screw for D-RAIL 6mm -Ideal For IBR on Steel Structures, Includes 1 x Stainless Steel Bolt , 1 x Rubber Washer, 3 x Nuts, 6mm Hexagon Bolt Screw Head , Retail Box, No warranty

Click Here For More Detail

Click Here For a Quick Description

Solarix IBR Hanger Bolt screw for D-RAIL 6mm -Ideal For IBR on Steel Structures, Includes 1 x Stainless Steel Bolt , 1 x Rubber Washer, 3 x Nuts, 6mm Hexagon Bolt Screw Head , Retail Box, No warranty

Product Overview
The Solarix IBR Hanger Bolt for D-RAIL 6mm is a robust solution designed to secure solar mounting systems on steel structures. Crafted from high-quality stainless steel for resilience in diverse conditions, its 6mm Hexagon Bolt Screw Head streamlines installation and ensures stability. Specifically engineered for IBR roof sheeting on steel structures, it provides a reliable anchor point for solar panel installations. This hanger bolt, made from premium corrosion-resistant stainless steel, guarantees the longevity and stability of your solar installation. The kit includes essential components – 1x Stainless Steel Bolt, 1x Rubber Washer, and 3x Nuts – ensuring a reliable and efficient setup for your solar panel system, enhancing its long-term reliability. Versatile for residential, commercial, and industrial projects, the Solarix IBR Hanger Bolt offers a dependable and durable foundation for steel structures.

Highlights
• Stock Code SOLSIBRHBS01
• Description Solarix IBR Hanger Bolt screw for D-RAIL 6mm Steel
• Product Type -Ideal For IBR On Steel Structures Solar Panel Installations
• Corrosion-Resistant IBR Hanger Bolt
• Crafted From Premium Stainless Steel
• Comprehensive Kit 1x Bolt, 1x Rubber Washer, and 3x Nuts
• 6mm Hexagon Bolt Screw Head Provides A Secure And Stable Foundation
• Durable and Weather-Resistant
• Tailored For Steel Structures
• Built To Withstand The Rigors Of Outdoor Use
• Providing A Dependable Anchor Point For Your Solar Mounting System

Stock Code: SOLHZINTSTKS

Solarix Hazard And Warning Installation Labels - A4 Sheet Easy To Apply Quality Vinyl Stickers, Tailored To South African Specifications, Suitable For New And Old Distribution Boxes, Sold As A Single Sheet , Retail Box , No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix Hazard And Warning Installation Labels are designed according to South African electrical specifications and suitable to use on old and new Distribution Boxes(DB) as well as Combiner Boxes . These easy to apply quality vinyl stickers clearly displays information to ensure that your Inverter and Solar PV cabling is clearly marked for a safe and compliant installation. This Is Sold As A Single Sheet Of Labels

Specifications
• Stock Code SOLHZINTSTKS
• Description Solarix Hazard And Warning Installation Labels
• A4 Sheet Easy To Apply Quality Vinyl Stickers
• Tailored To South African Specifications
• Ensure Safe And Compliant Installation
• Clearly Displays Information
• Ensure Inverter And Solar PV Cabling Is Clearly Marked
• Suitable For New And Old Distribution Boxes(DB)
• Suitable To Use In For Combiner Boxes
• Sold As A Single Sheet Of Labels

Stock Code: SOL35MMBC50MBKPM

Solarix 35mm2 Battery Power Cable Per Metre Black -High Performance Battery Cable, 2AWG,, Black Translucent Flexible PVC Insulation, Used For Connection between Lithium Or Gel Batteries to 12V, 24V and 48V Inverter Systems, Sold Per Metre, Please Note 35mm2 Area Is Equal To 10.8-11.9mm Diameter, Retail Box, No Warranty - Priced Per Metre

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix High Performance 2AWG 35mm2 Black Battery Power Cable is ideal for use with a connection between Lithium Or Gel Batteries to 12V, 24V and 48V Inverter systems. Their robust cable structure makes them resistant to low and high temperatures and various substances. Black Translucent Flexible PVC Insulation. This Cable Is Good For Up To 100 Amps At 5 Metres Or Less. Cable Material is CCA (50% Copper and 50% Aluminium) Sold Per Metre Lengths

Please Note 35mm2 area is equal to 10.8-11.9mm diameter

Specifications
• Stock Code SOL35MMBC50MBKPM
• Description Solarix 2AWG 35mm2 Battery Power Cable Black Per Metre
• Product Type Power Cable Connection Between Lithium Or Gel Batteries To 12V, 24V and 48V Inverters
• Black Translucent Flexible PVC Insulation
• This Cable Is Good For Up To 100 Amps At 5 Metres Or Less
• Cable Material is CCA (50% Copper and 50% Aluminium)
• Temperature Ratings Fixed: -40°C to +85°C
• Temperature Ratings Flexed: -20°C to +85°C
• Minimum Bending Radius Flexed: 6 X Overall Diameter
• Sold Per Metre Lengths
• Please Note 35mm2 area is equal to 10.8-11.9mm diameter

Stock Code: SOLFC10MM5MBLK

Solarix Flexible Conduit 10mm Diameter PVC Black 5 Metre-Flexible Split Cable Sleeving Conduit, Used Electrical Wire Insulation, Inner Diameter Is 10mm, Length 5 Metres , Colour Black, Retail Box , No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix Flexible Split Cable Sleeving Conduit 10mm Diameter PVC Black 5 Metre is ideal for the protection and structure of running electrical wiring through machinery or buildings, This Flexible Split Cable Sleeving Conduit allows the conduit to be easily installed on pre-installed wiring. Can also be used by users who are looking to enclose cables in a tidy fashion or needing to repair a damaged conduit. Can be used to wrap electrical wires in Home, Motor Vehicles, Ideal For Inverters And Battery Installations.

Specifications
• Stock Code SOLFC10MM5MBLK
• Description Solarix Flexible Conduit 20mm Diameter PVC Black 5 Metre
• Product type Flexible Split Cable Sleeving Conduit Easily Installed On Pre-Installed Wiring
• Inner Diameter Is 10mm
• Cable Length is 5 Metres
• Material High Quality PVC
• Colour Black

Stock Code: SOLLR40064PCK

Solarix M6 Insulated Ring Solar PV Terminal Connector Pack of 4-M6 Stud Size, 4mm² to 6mm² Solar PV Cable, Also Known As A Ring Connector Or Cable Lug, Yellow Sleeve, Sold As Pack Of 4, Retail Box , No warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
The Solarix M6 Insulated Ring Solar PV Terminal Connector also known as a ring connector or cable lugs. Ring crimp terminals are used for connecting an electrical cable or Solar PV wire to a stud or a post on an electrical component such as a battery terminal. This ring terminal is made from highly conductive tin plated for maximum electrical conductivity and corrosion resistance. A yellow colour coded vinyl insulation provides protection to the terminal Once correctly crimped onto a wire or cable this ring terminal will provide a secure and reliable connection. Sold As Pack Of 4

Highlights
• Solarix M6 Insulated Ring Solar PV Terminal Connector
• M6 Stud Size
• Used on 4mm² to 6mm² Solar PV Cables
• Inner Ring Diameter 6.35mm
• Outer Ring Diameter 10mm
• Also Known As A Ring Connector Or Cable Lug
• Yellow Sleeve
• Sold As Pack Of 4

Specifications
• Stock code SOLLR40064PCK
• Solarix M6 Insulated Ring Solar PV Terminal Connector Pack of 4
• Insulation Material Yellow PVC
• Inner Ring Diameter 6.35mm
• Outer Ring Diameter 10mm
• Minimum Wire Size mm² 2.5mm²
• Maximum Wire Size mm² 6mm²
• Minimum Wire Size AWG 12AWG
• Maximum Wire Size AWG 10AWG
• Stud Size M6
• Sleeve Colour Yellow
• Contact Plating Tin
• Contact Material Copper
• Thickness 1mm
• Overall Length 30mm

1 to 22 of 22 items

Page 1

Photographed products shown above are for illustrative purposes only. www.esquireshop.com © 2021
