Esquire Technologies - Hard Disk Docks

1 to 6 of 6 items

Page 1

Stock Code: A7E34AA

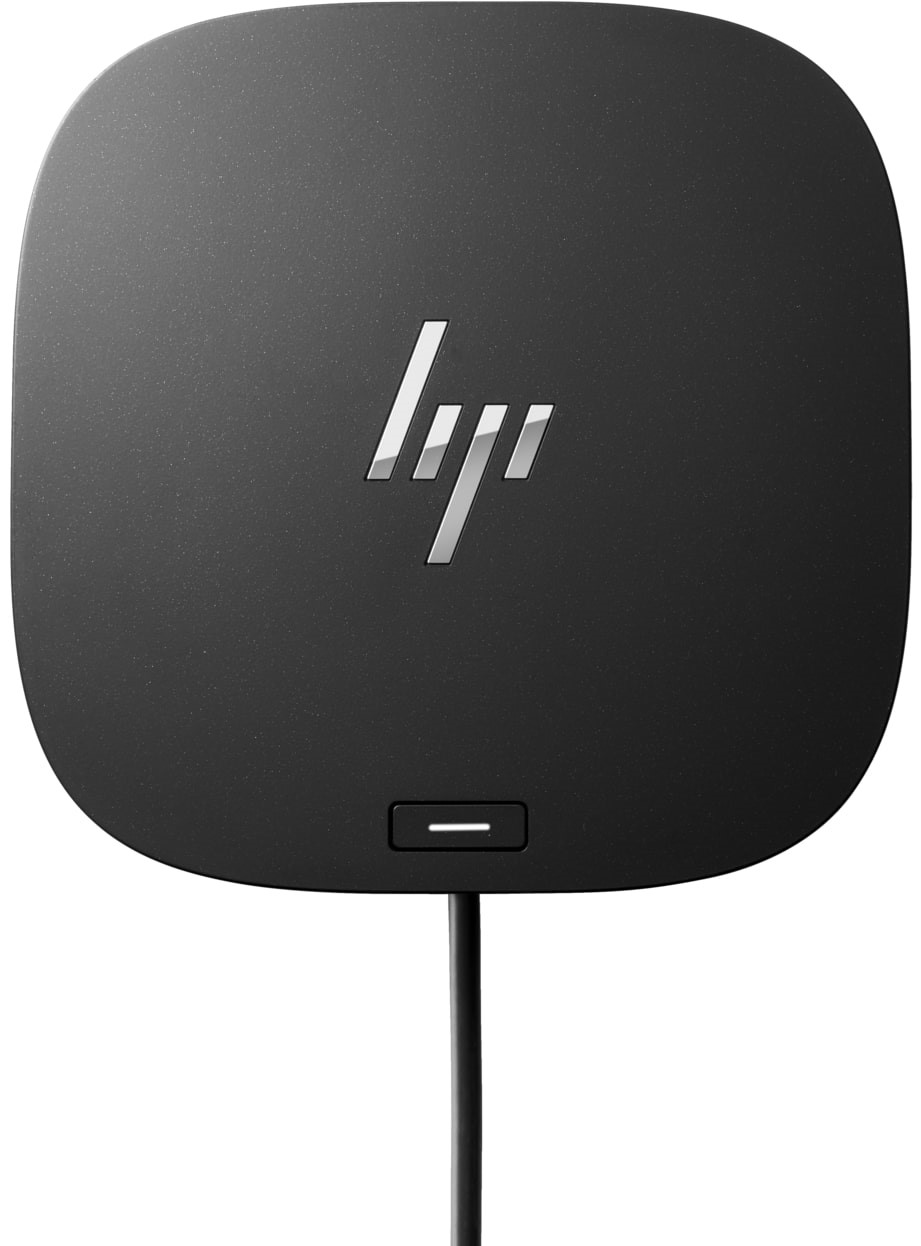

HP 230W Docking Station A7E34AA offers a full line of docking stations designed exclusively for select HP Business Notebook platforms so you can maintain the connectivity and comfort of your laptop at a fixed station.

Click Here For More Detail

Click Here For a Quick Description

Product Overview

The HP 230W Docking Station (A7E34AA) is a robust solution designed for select HP Business Notebooks, offering seamless connectivity and convenience. It features multiple ports, including USB 2.0 and 3.0, DisplayPort, VGA, DVI-D, and RJ-45 Ethernet, for efficient device integration and workspace organization. With backward compatibility and support for legacy devices, it ensures enhanced productivity and ease of use at a fixed workstation.

Specifications

•Product Code: A7E34AA
•Description: HP 230W A7E34AA Docking Station
•Connectivity technology: Docking
•Product colour: Black
•Cable lock slot type: Kensington
•Brand compatibility: HP
•AC input voltage: 100-240 V
•AC input frequency: 50 - 60 H
•Power consumption (typical): 230 W
•Width: 260 mm, Depth: 163.6 mm, Height: 66 mm

Stock Code: HZ-3APLUS

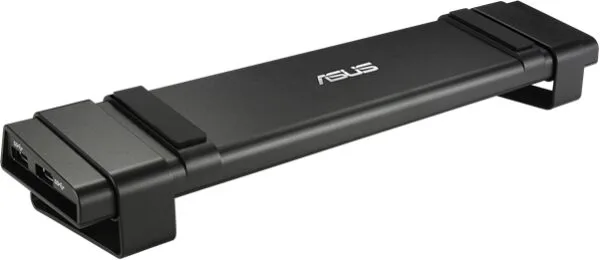

Asus HZ-3a plus USB 3.0 Universal Docking Station, 4x USB 3.0, Gigabit Ethernet, 1x HDMI, 1x DVI-I, Dual Display, Headset and Mic ports, HDMI Port supports 4K UHD 3840×2160, DVI-I Port supports resolutions up to 2048×1152, DC-out Maximum 90W for Laptop charging Port with 3 kinds of plugs.

Click Here For More Detail

Click Here For a Quick Description

Product Overview

The ASUS USB3.0 HZ-3A Plus Dock enhances laptop productivity with a single-cable connection, offering four USB 3.0 ports with fast-charge support and a DC-out 90W charger for simultaneous laptop charging. It supports dual displays via HDMI (4K UHD) and DVI-I ports, and includes a gigabit Ethernet port for reliable network connectivity. The docking station features an adjustable stand, Kensington Lock slot, and additional audio ports, making it an ideal connectivity solution for ultraportable laptops.

Specifications

•Product Code: HZ-3APLUS
•Description: Asus HZ-3A PLUS USB 3.0 Universal Docking Station
•Model: ASUS USB3.0_HZ-3A Plus Dock
•Category: Dock
I/O Ports
•1 x USB 3.0 Upstream port for computer side (Type B receptacle)
•1 x MIC in port
•1 x Audio out port
•4 x USB 3.0 port
•1 x DVI-I port
•1 x Standard HDMI port
•1 x 10/100/1000M LAN port
•1 x Type C port
Video Resolution
•DVI-I Single Output: 800*600 (4:3)
•DVI-I Single Output: 1024*768 (4:3)
•DVI-I Single Output: 1152*864 (4:3)
•DVI-I Single Output: 1280*720 (16:9)
•DVI-I Single Output: 1280*768 (16:9)
•DVI-I Single Output: 1280*800 (16:10)
•DVI-I Single Output: 1280*960 (4:3)
•DVI-I Single Output: 1360*768 (16:9)
•DVI-I Single Output: 1400*1050 (4:3)
•DVI-I Single Output: 1440*900 (16:10)
•DVI-I Single Output: 1600*900 (16:9)
•DVI-I Single Output: 1600*1200 (4:3)
•DVI-I Single Output: 1680*1050 (16:10)
•DVI-I Single Output: 1920*1080 (16:9)
•DVI-I Single Output: 1920*1200 (16:10)
•DVI-I Single Output: 2048*1152 (16:9)
•HDMI Single Ext. Output: 1280*720 (16:9)
•HDMI Single Ext. Output: 1280*768 (16:9)
•HDMI Single Ext. Output: 1360*768 (16:9)
•HDMI Single Ext. Output: 1680*1050 (16:10)
•HDMI Single Ext. Output: 1920*1080 (16:9)
•HDMI Single Ext. Output: 2048*1152 (16:9)
•HDMI Single Ext. Output: 3840*2160 (16:9)
OS Support
•Windows® 10
•Windows® 8 and up
•Power Adapter: 120W DC 19.0V / 6.32A
•Security: Kensington lock
•Cable Length: 60 cm
•Color: Grey
•Weight: 290g
Dimensions
•Docking :335.0(L) x 65.65(W) x 24.09(H) mm
•Stand: 75.27(L) x 23.0(W) x 49.06(H) mm
Package Contents
•Docking*1, USB 3.0 Micro-B to Type A Cable*1, Quick Start Guide*1, Installation CD*1,
•DVI-I to VGA adaptor*1, Stand*2, Power Adapter*1
Compatible Model
•B1400CEAE, B1400CEPE, B1500CEAE, B1500CEPE, BR1100CKA, BR1100FKA, E410KA, E510KA, M5401WUA, UX425UG, UX434FAW, X7400PC, FA506IM, FA706IM, FA706II, G512LH, G531GD, G531GT, GA401IE, GU603HR, GU603HE, GU603HM, GV301QC, GX703HM, GX703HRD, GX703HSD

Stock Code: 151955

Manhattan SuperSpeed USB 3.0 Dual 2.5" SATA HDD Dock - USB-A Male to Two 2.5" SATA HDD Slots (for Drives up to 6 TB), RAID Functions, 500 MB/s Data Transfer Rate, Black, Retail Box, Limited Lifetime Warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview
Easily transfer all your files from a computer to up to two SATA Hard-disk Drives (HDD) — and vice-versa— with USB SuperSpeed technology.

The Manhattan SuperSpeed USB 3.0 Dual 2.5" SATA HDD Dock features dual insertion slots that accept 2.5" SATA Hard-Disk Drives (HDD) up to 6 TB simultaneously, allowing data to be copied between multiple drives of different sizes for easier data recovery and backup tasks. Ideal for system builders, integrators and computer technicians, this SATA HDD Dock is Windows 2000/2003/XP/Vista/7/8/8.1/10 compatible and supports Mac and Android with SuperSpeed USB and SATA data transfer speeds up to 5 Gbps. Its hot-swap capability allows rapid, multi-HDD exchanges and quick data access without computer restarts, special drivers or complicated configuration.

Features:
• Provides fast data access, creates portable storage and simplifies hard-disk drive backups and exchanges
• Dual insertion slots accept 2.5" SATA hard-disk drives up to 6 TB
• Quickly copy/transfer data to and from drives
• Supports RAID 0 (striping) and RAID 1 (mirror) over USB and eSATA
• Data transfer rate up to 500 MB/s
• Compatible with Windows 2000/2003/XP/Vista/7/8/10, Mac OS 10.5 or above, Android OS 4.0 or above
• Bus powered — no external power required
• Plug and Play and hot swappable capabilities

Specifications
• Product Code: 151955
• Description: Manhattan SuperSpeed USB 3.0 Dual 2.5" SATA HDD Dock

Standards and Certifications
• Compliant with USB 3.0 and SATA Revision 2.6
• CE
• RoHS
• WEEE
• FCC

General
• Connections: external, USB 3.0 type-A male; internal, (2) SATA data
• Dual insertion slots fit 2.5" SATA HDDs
• Power and activity LED indicators

Transfer Rate
• SuperSpeed USB up to 5 Gbps and SATA up to 480 Mbps

Physical
• Dimensions: 9.32 x 9.1 x 4.71 cm (3.67 x 3.58 x 1.85 in.)
• Weight: 85 g (0.19 oz.)

Electrical
• Output: + 12 V / 3 A center post

System Requirements
• Available USB 3.0 type-A port
• Windows 2000/2003XP/Vista/7/8/8.1/10 compatible
• Mac 10.5 or above
• Android 4.0 or above

Operating Environment
• Operation Temperature: 0 – 40°C (32 – 104°F)
• Storage Temperature: -20 – 60°C (-4 – 140°F)
• Humidity (noncondensing): 0 – 96%

Package Contents
• SuperSpeed USB 3.0 Dual 2.5" SATA HDD Dock
• Quick instruction guide

Stock Code: 35462

Freecom CLS Hard Drive Docking Station USB2.0, Retail Box, 2 year warranty

Click Here For More Detail

Click Here For a Quick Description

FreeCom CLS Hard Drive Docking Station USB2.0 Retail Box 1 year swop out warranty

Product Overview

A new way of organising and categorising data
Freecom’s new Mobile Drive CLS series redefines the way people look at hard drive storage.

Up to now a hard drive is merely seen as a PC component (internal hard drive) and an
easy way to expand one’s storage capacity (external hard drive).

These days it’s common to own more than one external hard drive, and more often than not the content on these drives is
very diverse and one particular fi le, song or movie may be very hard to find.

The Mobile Drive CLS concept creates order in the data chaos.

You can now label your drive to match the content on the drive.

One drive for movies, one drive for music, one drive for work documents, one drive for full system
backups, one drive per family member….the sky is the limit.

Your data is now organized and easy to fi nd.

Remember the old cassette tapes, VHS video cassettes and floppy diskettes?

Meet the 21st century version
– the Mobile Drive CLS!

The individual drives can be connected via USB to any PC, MAC or notebook or can be placed in a specially designed dock,
which connects the drives to the computer. The CLS dock can hold up to 3 drives, and each drive will be visible as a separate
drive letter on your computer.

To keep your drive safe from dust, damages and scratches you can keep it in the included
storage container when the drive is not in use.

The Mobile Drive CLS is made out of form-fitting rubber which not only gives the drive a designer’s look and feel, but also
reduces vibration and provides grip when placed on a desk.

Dock (3 ports) for the Mobile Drive CLS, an external mobile hard drive with label system. Creates order in the data chaos.

USB DOCK: designed for Freecom Mobile Drive CLS

NUMBER OF DOCKING PORTS: 3

NUMBER OF HOST PORTS: 1, for connecting other USB devices

INTERFACE: USB 2.0

POWER REQUIREMENTS: power adapter 5V/2A

DIMENSIONS: 9.6 x 6.2 x 2 cm

WEIGHT: 60 g
