Specification
Standards and Certifications
HDMI 1.2a
CE
FCC

General:
Supports HDCP pass-through
Computer-to-video converter range: up to 5 m (16 ft.)
Video converter-to-monitor range: up to 5 m (16 ft.)
Power: 5 V DC / 1 A; cable with ferrite core, 1.2 m (4 ft.)

Connections:
Input: (1) VGA DB15 male and (2) RCA audio left/right female
Output: (1) HDMI female

Signal input/output:
Input video signal: 0.5 – 1.0 V p-p
Input DDC signal: 5 V p-p (TTL)
Maximum single link range: 1280 x 1024 and 1080p
Output video: HDMI 1.2a
Frequency: 1.65 Gbps / 165 MHz

Video resolutions:
VGA: 640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 960, 1280 x 1024
DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p

Physical:
LED indicators: power and port connection
Dimensions: 89 x 29 x 68 mm (3.5 x 1.1 x 2.7 in.)
Weight: 119 g (4.2 oz.)

Package contents:
VGA to HDMI Converter
Power adapter and user manual

The Lenovo DisplayPort to HDMI 2.0b Adapter, an active adapter, connects DisplayPort enabled notebooks or desktops to HDMI enabled displays such as monitors and projectors. Its 225mm (8.8") length, and 39g weight (0.08lbs) weight make it versatile and travel ready. So you can enjoy all the benefits of HDMI 2.0b technology, like support for resolutions up to UHD 4K @60Hz, at any time. Color Black Connection Type DP Hardware Requirements DisplayPort Hot plug yes Max Power Consumption 5V/0.2A Over voltage protection Yes Brand Lenovo Packed Weight 55g Agency Approvals CE, CB,FCC, EAC, VCCI,C-tick Ethernet na Package Type brown box Maximum Relative Humidity (%) 1 Minimum Relative Humidity (%) 0 Included Accessory poster Shipment Group poster Support PXE Boot na Supported Operating Systems OS Independent.

Product Overview

The Lenovo DisplayPort to HDMI 2.0b Adapter is an active adapter designed to connect DisplayPort-enabled devices to HDMI displays, such as monitors and projectors. With a compact length of 225mm (8.8") and weighing just 39g (0.08lbs), it is perfect for on-the-go use while supporting resolutions up to UHD 4K at 60Hz, ensuring high-quality video output. This versatile adapter is ideal for users seeking seamless connectivity and portability in their digital setups.

Specifications

•Product Code: 4X90R61023

•Description: Lenovo DispayPort to HDMI Adatper

•Cable length: 0.225 m
•Connector 1: DisplayPort
•Connector 2: HDMI Type A (Standard)
•Color: Black
•Hot plug: yes
•Max Power Consumption: 5V/0.2A
•Packed Weight: 55g
•Agency Approvals: CE, CB,FCC, EAC, VCCI,C-tick
•Ethernet: na
•Connection Type: DP

The Z29B, if similar to other HDMI capture devices, would be designed to convert HDMI signals into a format compatible with USB devices, allowing for easy recording or streaming of video content. It would likely support resolutions up to 1080p and be compatible with various operating systems like Windows, Mac, and Linux. This type of device is ideal for applications such as live streaming, video recording, and conference presentations.

Product Overview

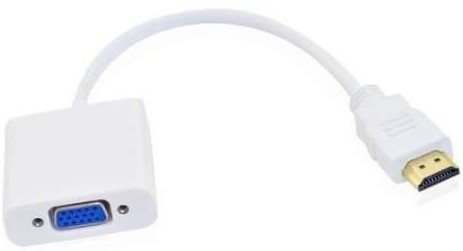

The Manhattan HDMI to VGA Converter helps establish a fast, simple and convenient link between newer HDMI-equipped desktop and notebook computers and other media sources with existing VGA monitors, projectors and other display devices. The Manhattan HDMI to VGA Converter is easy and quick to install and requires no complicated configuration or setup to help extend the service life and fully realize the investment and value of legacy VGA displays, projectors and other equipment. This low-power, cost-effective and reliable solution allows users to transition to HDMI bandwidths, resolutions, Deep Color and more without the expense of upgrading to newer and costly monitors and projectors. Its integrated, all-in-one design helps achieve a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly. Its Micro-USB port allows for additional power if required.

Features
• Converts an HDMI digital signal to a VGA analog video
• Enjoy high-definition images on a VGA monitor, projector or other display device
• Supports 1080p analog video output
• Fully shielded to reduce EMI and other interference sources
• Gold-plated contacts for best performance
• Molded PVC boot and strain relief
• Micro-USB port if additional power is required

Specifications
•Stock Code 151467
•Description Manhattan HDMI to VGA Converter
Type HDMI to VGA Converter- HDMI Male to VGA Female
•UL20276
•HDMI 1.3

Contacts
•HDMI 19-pin male
•VGA 15-pin female
•Micro-USB female
•Molded PVC boot
•Shielded

Cable
•30-AWG connectors
•Mylar and aluminum shielding
•Withstanding voltage: 300 VDC
•Insulation resistance: 10 MΩ
•Conductive resistance: 5 Ω
•Thermal plastic casing
•Length: 30 cm (12 in.)
•Weight: 34 g (1.2 oz.)

Package Contents
•HDMI to VGA Cable, HDMI Male to VGA Female

Convert your VGA signal to HDMI with the Gizzu 1080P VGA to HDMI Adapter with Audio. This adapter features a VGA input to HDMI female interface, supporting high-definition video resolutions up to 1080P (1920×1080@60Hz). It includes a 3.5mm audio female connection, enabling you to transmit both video and audio seamlessly. Built with a durable aluminium housing, this adapter ensures reliable performance and protection. Ideal for business meetings, home entertainment, or gaming, it’s compatible with a variety of devices, including PCs, notebooks, HDTVs, monitors, displays, and projectors. Upgrade your connectivity with this robust and versatile adapter.

Product Overview

The 1080P VGA to HDMI Adapter with Audio provides a seamless solution for connecting VGA devices to HDMI displays, supporting resolutions up to 1920×1080@60Hz for crisp video quality. It features a 3.5mm audio port for synchronized audio and video output, making it ideal for business meetings, home entertainment, or presentations. With its plug-and-play functionality, this compact adapter ensures easy setup without requiring additional software or power adapters.

Features

•VGA to HDMI female interface
•Supports up to 1920×1080@60Hz Video
•3.5mm Audio female connection
•Ideal for business meetings, home entertainment, or gaming.

Specifications

•Product Code:  GAPHVA

•Description:
•Interface: VGA input (male) to HDMI output(female)
•Resolution support: 1920×1080@60Hz
•Audio Connection: 3.5mm Audio Female
•Material: Aluminium housing
•Colour: Black
•Compatibility: PCs, Notebooks, HDTVs, Monitors, Displays, Projectors
•Cable length: 25cm
•Product weight: 65g

Features
•Connects an HDMI cable to another HDMI cable or display
•Supports 4K resolution
•Convenient 90° right angle allows for easy connection in the most inconvenient places; e.g., tight corners, difficult ports
•Gold-plated contacts for best performance
•Intended for use with Manhattan HDMI cables

Specifications
•Bandwidth: 10.2 Gbps
•340 MHz
•Meets or exceeds existing HDMI standards
•Length: 4 cm (1.6 in.)

 Connectors
•HDMI A female, 19-pin gold-plated contacts
•HDMI A male, 19-pin gold-plated contacts

 Electrical
•Current rating: 0.5 ADC
•Withstanding voltage: 300 VDC
•Insulation resistance: 5 MΩ
•Conductive resistance: 2 Ω

General
•Length (overall): 42 x 29 x 12 mm (1.7 x 1.1 x 0.5 in.)
•Weight: 10 g (0.35 oz.)
•Moulded PVC

 Package Contents
•HDMI Adapter, A to A

uGreen Micro HDMI Male to HDMI Female Adapter, Retail Box, No Warranty



Highlights
•Supports 4Kx2K resolution
•24K gold-plated connectors
•Widely compatible with HDMI devices





Specifications
•Stock Code: 20106
•Description: uGreen Micro HDMI Male to HDMI Female Adapter
•Manufacturer: Ugreen
•Connectors: 24K Gold-plated
•Resolution support: 4Kx2K, 4096x2160, 3840 x 2160, 256 0x1600, 2560 x1440, 1920 x1200 and 1080p Full HD

•Retail Box

•No Warranty



**Note:
•V2.0 is backward compatible with V1.4



What's in the box
Micro HDMI M to HDMI F adapter x 1
