1 to 24 of 40 items

Page 1 | 2 | > | >>

Stock Code: HIK8CHKIT

Hikvision 8 Channel 720p DIY Kit Complete Installation Kit Includes: 1 x Hikvision 8 Channel DVR (DS-7108HGHI-F1) 8 x Hikvision 720p IR Bullet Cameras 8 x 20m Ready made BNC Coaxial/Power

Click Here For More Detail

Click Here For a Quick Description

Hikvision 8 Channel 720p DIY Kit Complete Installation Kit Includes: 1 x Hikvision 8 Channel DVR (DS-7108HGHI-F1) 8 x Hikvision 720p IR Bullet Cameras 8 x 20m Ready made BNC Coaxial/Power

Product Overview

The Hikvision 8 Channel 720p DIY Kit offers a comprehensive surveillance solution, perfect for home or business use. It includes an 8-channel DVR (DS-7108HGHI-F1), eight 720p IR bullet cameras for clear day and night monitoring, and all necessary accessories like 20m BNC cables and a power supply for easy installation. This kit ensures reliable and user-friendly security coverage.

Stock Code: DS-2CD2955G0-ISU-1.05MM

The Hikvision DS-2CD2955G0-ISU offers high-quality imaging with a 5MP resolution and a 180° fisheye view, ideal for comprehensive surveillance coverage. It features efficient H.265+ compression and 120 dB true WDR technology to handle strong backlight conditions, along with up to 8 meters of IR illumination. With built-in audio capabilities, alarm interfaces, and support for both conventional power and PoE, this camera provides robust surveillance functionality for various indoor environments.

Click Here For More Detail

Click Here For a Quick Description

Product Overview

The Hikvision DS-2CD2955G0-ISU delivers high-quality 5MP imaging with a 180° fisheye view, ideal for wide-area surveillance in indoor settings. It features advanced H.265+ compression, true WDR technology for clear imaging in challenging lighting, and intelligent detection capabilities like motion and intrusion alerts. With built-in audio, alarm interfaces, and support for PoE power supply, this camera ensures efficient monitoring and seamless integration into security systems.

Specifications

•Product Code: DS-2CD2955G0-ISU-1.05mm
•Description: Hikvision 5MP 1.05mm Fixed Fisheye Network Camera
•High quality imaging with 5 MP resolution
•1/2.7" Progressive Scan CMOS
•2560 x 1920 Max. Resolution
•1.05mm Fixed focal lens
•Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV: 180°
•D: 21 m, O: 8 m, R: 4 m, I: 2 m
•Efficient H.265+ compression technology
•180° fisheye view
•Clear imaging against strong back light due to 120 dB true WDR technology
•Up to 8m IR
•850nm IR Wavelength
•U: Built-in microphone
•S: Audio and alarm interface
•1x input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
•1x output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
•1x input, 1x output (max. 12 VDC, 30 A) alarm
•1x RJ45 10/100MB self-adaptive Ethernet port
•12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection ; PoE: IEEE 802.3af, Class 3, max. 7.5 W
•*Power supply is not included

Stock Code: DS-7216HGHI-F1

Hikvision 7200 Series 16CH Turbo High Definition Stand Alone DVR - Support H.264+/H.264 video compression, 16 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1-ch RCA, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 18-ch IP camera input (up to 4 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Motion 1.0, 1U Black Unit Rack-Mountable, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision 7200 Series 16CH Turbo High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, 16 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1 channel, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF lite, HDMI/VGA output at up to 1920 × 1080 resolution, Retail Box , 1 year warranty

Description

Easy connection to your mobile with Hikvision Hik-connect bar code scanning, without any technical or port forwarding knowledge. Includes free iPhone, android, PC and Mac remote viewing software.

Highlights

• 16-ch 1080p Lite 1U H.264 DVR

• 16 channels and 1 HDD 1U DVR

• H.264+ / H.264 video compression

• Encoding ability up to 1080p lite @ 25/30 fps

• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

• Up to 18 network cameras can be connected

Stock Code: DS-7116HQHI-K1

Hikvision 7100 Series 16CH Turbo High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, 16 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1-ch RCA and 16-ch via coaxial cable, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 4MP Lite and 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 18-ch IP camera input (up to 6 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Motion 1.0, 1U Mini White Unit, Smart search for efficient playback, Remote viewing from anywhere on pc and cellphone, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision 7116 Series 16CH Turbo High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, 16 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1 channel, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF lite, HDMI/VGA output at up to 1920 × 1080 resolution, Retail Box , 1 year warranty

Highlights
• 8 channels and 1 HDD mini size DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 24 network cameras can be connected

Specifcations

• Stock Code:DS-7116HQHI-K1
• Description:Hikvision 7116 Series 16CH Turbo High Definition Stand Alone DVR
Video Compression
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
• When 1080p Lite mode is not enabled:
• 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
• When 1080p Lite mode is enabled:
• 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate
Main stream:
• When 1080p Lite mode is not enabled:
• For 4 MP stream access:
• 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
• For 1080p stream access:
• 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• When 1080p Lite mode is enabled:
• 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
• WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• Remote Connection 128
• Total Bandwidth 128 Mbps
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• AHD Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS Input Support

Stock Code: DS-7116HGHI-K1

Hikvision 7100 Series 16CH Turbo High Definition Stand Alone DVR - Support H.264+/H.264 video compression, 16 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1-ch RCA, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 18-ch IP camera input (up to 4 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Motion 1.0, 1U Mini White Unit, Smart search for efficient playback, Remote viewing from anywhere on pc and cellphone, Motion Detection Version 2.0, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Stock Code: DS-7116HGHI-F1

Hikvision 7116 Series 16 Channel Turbo 720p High Definition Stand Alone DVR - Up to 960p resolution, Support H.264+/H.264 video compression, 16 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 O),supporting coaxitron connection, Audio Input: 1 channel, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled, the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision 7116 Series 16 Channel Turbo 720p High Definition Stand Alone DVR - Up to 960p resolution, Support H.264+/H.264 video compression, 16 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1 channel, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled, the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, Retail Box , 1 year warranty

Product Overview
Hikvision Turbo HD 16 x Channel Stand Alone 720p DVR is an advanced Digital video recorder can connect HD analog cameras and provide powerful surveillance. It features multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system. This DVR is widely applied in the areas of finance, public security, military, communication, transportation, education, etc.

Please Note : The Cameras and Hard Disk Drive up to 6TB are not included in this package , They can be purchased separately

Highlights
•16 x Channel Turbo 720p High Definition Stand Alone DVR
•Support H.264+/H.264 video compression
•Synchronous playback at 720p resolution; and reverse playback for multi-camera
•16 Channel Analog and HD-TVI video input
•BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection
•Audio Input: 1 channel
•1x SATA Interface Support up to 6TB Hard disk drive
•10/100 self-adaptive Ethernet interface
•2x USB 2.0 Ports on Rear panel
•Supports real-time 1080p Lite when enabled, the image effect is similar to 1080p
•HDMI/VGA output at up to 1920 × 1080 resolution

Stock Code: DS-7108HQHI-K1

Hikvision 7100 Series 8CH Turbo High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, 8 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1-ch RCA and 8-ch via coaxial cable, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 10-ch IP camera input (up to 6 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Motion 1.0, 1U Mini White Unit, Smart search for efficient playback, Remote viewing from anywhere on pc and cellphone, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Highlights

• 8-ch 1080p Mini 1U H.265 DVR

• 8 channels and 1 HDD mini size DVR

• Efficient H.265 pro+ compression technology

• Encoding ability up to 1080p @ 15 fps

• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

• Up to 12 network cameras can be connected

Specifications

Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Encoding Resolution

• When 1080p Lite mode is not enabled:

• 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

• When 1080p Lite mode is enabled:

• 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

• Main stream:

• When 1080p Lite mode is not enabled:

• For 4 MP stream access:

• 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

• For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

• For 1080p stream access:

• 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

• For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

• When 1080p Lite mode is enabled:

• 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

• Sub-stream:

• WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps

• Dual-StreamSupport

• Stream TypeVideo, Video & Audio

• Audio CompressionG.711u

• Audio Bitrate64 Kbps

Stock Code: DS-7208HGHI-F1

Hikvision 7200 Series 8CH Turbo High Definition Stand Alone DVR - Support H.264+/H.264 video compression, 8 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1-ch RCA, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 10-ch IP camera input (up to 4 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Motion 1.0, 1U Black Unit Rack-Mountable, Smart search for efficient playback, Remote viewing from anywhere on pc and cellphone, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision 7108 Series 8CH Turbo High Definition Stand Alone DVR - Support H.264+/H.264 video compression, 8 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1 channel, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled, the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, Retail Box , 1 year warranty

Highlights

• 8 channels and 1 HDD 1U DVR
• H.264+ / H.264 video compression
• Encoding ability up to 1080p lite @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 10 network cameras can be connected

Specifications

• Stock Code:DS-7208HGHI-F1
• Description:Hikvision 7108 Series 8CH Turbo High Definition Stand Alone DVR
• IP Video Input 2-ch (up to 10-ch) Up to 960p resolution Support H.264+/H.264 IP cameras
• Analog Video Input 8-ch BNC interface (1.0 Vp-p, 75 Ω)
• Turbo HD Input 1080p25, 1080p30, 720p25, 720p30
• AHD Input 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input 1080p25, 1080p30, 720p25, 720p30
• CVBS Input Support
• Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio Reuse the first audio input
• Synchronous Playback 8-ch
• VGA/HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Remote Connections 128
• Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
• SATA 1 SATA interface
• Capacity Up to 6 TB capacity for each disk
• Alarm In/Out N/A
• USB Interface Rear panel: 2 × USB 2.0
• Power Supply 12 VDC
• Consumption (Without HDD) ≤ 12 W
• Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity 10% to 90%
• Dimensions (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
• Weights (Without HDD) ≤ 1 kg (2.2 lb)

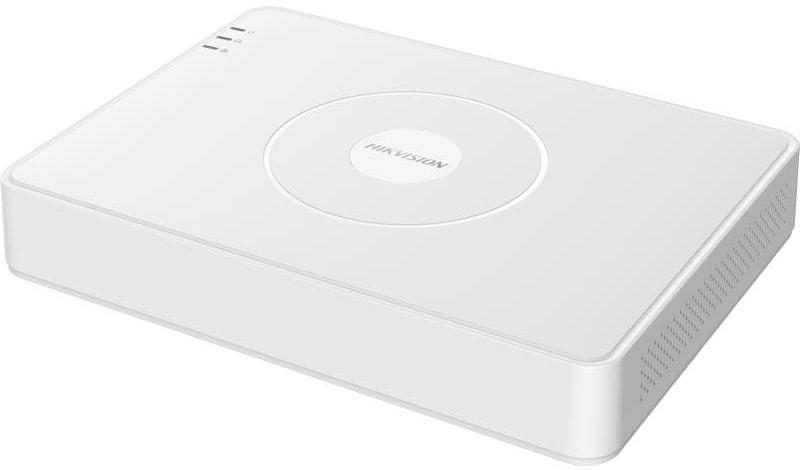

Stock Code: DS-7116HGHI-M1

Hikvision 7100 Series 16-ch 720p Mini DVR DS-7116HGHI-M1 - 16 channels and 1 HDD 1U AcuSense DVR, Efficient H.265 pro+ compression technology, Encoding ability up to 3K/5M Lite @ 12 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Up to 24 network cameras can be connected.

Click Here For More Detail

Click Here For a Quick Description

Product Overview

The DS-7116HGHI-M1 is a 16-channel 720p Mini 1U H.265 DVR featuring deep learning-based Motion Detection 2.0 for accurate human and vehicle classification, reducing false alarms. It supports multiple video inputs including HDTVI, AHD, CVI, CVBS, and up to 18 IP channels at 5MP resolution, with efficient H.265 Pro+ video compression for reduced storage needs. With up to 1080p Lite encoding at 15 fps, audio via coaxial cable, and a maximum 1200m transmission distance for 720p HDTVI signals, it offers versatile, high-quality surveillance recording and playback.

Features

•Smart Function
Deep learning-based motion detection 2.0
•Compression and Recording
H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p
•Storage and Playback
1x SATA interface (up to 10 TB capacity)
Smart search for efficient playback
•Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Specifications

•Product Code: DS-7116HGHI-M1
•Description: Hikvision 7100 Series 16-ch 720p Mini DVR
•Deep learning based human and vehicle targets classification of Motion Detection 2.0
•H.265 Pro+/H.265 Pro/H.265 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Max. 1200 m for 720p HDTVI signal
•Encoding ability up to 1080p lite @ 15 fps
•Audio via coaxial cable
•Up to 18-ch IP camera input (up to 5 MP)

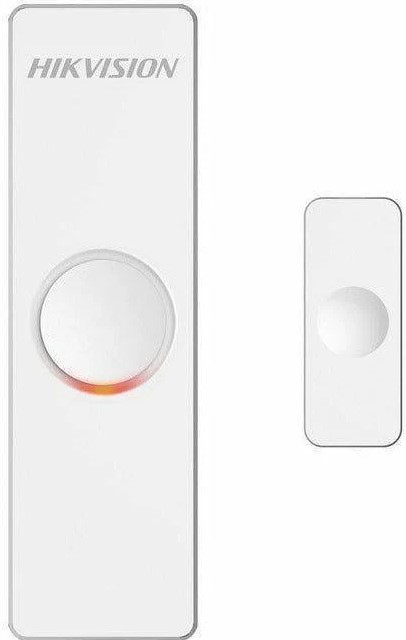

Stock Code: DSPWA32NKGT

Hikvision Basic Wireless Alarm Control Panel Kit - Supports Up To 32 Wireless Inputs And 4 Wireless Output Expanders, Two Way Wireless Technology , Supports Wifi and Ethernet Lan ( No GPRS), Push Notification Via App, Included 1x Wireless Control Panel, 1x PIR Motion Detector, 1x Reed Switch , 1x Magnetic Contact, 1x Remote Controller, 1x Manual, 1x Power Adapter, Built-in Rechargeable Lithium Battery , Complete Installation kit, Colour White

Click Here For More Detail

Click Here For a Quick Description

Product Overview

The Hikvision Basic Wireless Alarm Control Panel Kit is ideal solution for those looking for a simple and reliable system with enhanced communication functions to protect small objects, such as houses, kiosks, boutiques and service points. The complete installation kit 1x Wireless Control Panel, 1x PIR Motion Detector, 1x Reed Switch , 1x Magnetic Contact, 1x Remote Controller, 1x Manual, 1x Power Adapter. Supports up to 32 wireless inputs, 4 wireless output expanders , It offer LAN + Wi-Fi communication methods, it Offers reliable protection utilising two-way wireless technology the complete wireless connection reduces installation time; Communicates up to 400 m (in open areas) Supports Android and IOS that can be downloaded via QR code on the box , This kit ensures reliable and effective performance in monitoring and protecting premises. With its cutting-edge technology and user-friendly interface, is ideal for both residential and commercial applications.

Features

• Basic Wireless Alarm Control Panel Kit
• Supports Up To 32 Wireless Inputs And 4 Wireless Output Expanders
• Wireless communication at 433MHz for stable performance.
• Two Way Wireless Technology
• Supports Wifi And Ethernet Lan ( No GPRS )
• Supports Android And IOS That Can Be Downloaded Via QR Code
• Real-time monitoring and Push Notifications via mobile APP

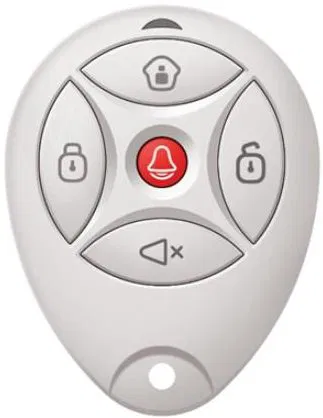

• Remote arming/disarming through smartphone or remote control
• Built-in Rechargeable Lithium Battery
• Complete Installation Kit

Product Applications

● Home security systems for burglary and intrusion detection.
● Small to medium-sized business premises monitoring.
● Remote properties and vacation homes security management.

Specifications

• Stock Code: DSPWA32NKGT
• Description :Hikvision Basic Wireless Alarm Control Panel Kit
• Supports Up To 32 Wireless Inputs And 4 Wireless Output Expanders
• Communication Technology: Two-way Wireless Communication
• Wi-Fi Standard: IEEE 802.11 b/g/n
• Ethernet Port: 1 x RJ45 10/100Mb Ethernet port
• Mobile App: Android and IOS Download via QR Code
• Backup Battery: Built-in Rechargeable Lithium Battery
• Battery Life: Up to 12 hours
• Power Supply: 12V DC
• Colour : White
• Installation Type : Desktop or Wall-mountable
• Tamper Protection: Front and Back Tamper
• Dimension : 180 mm x 150 mm x 30 mm
• Weight: 0.34 kg

Stock Code: DS-7108HGHI-K1

Hikvision 7100 Series 8CH Turbo High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, 8 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1-ch RCA, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 10-ch IP camera input (up to 4 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Motion 1.0, 1U Black Unit Rack-Mountable, Smart search for efficient playback, Remote viewing from anywhere on pc and cellphone, Motion Detection Version 2.0, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview

Hikvision brings an all-new DVR series to the market. Thanks to Hikvision's technology, the DVR Series consumes less power than ever, greatly reducing your costs and time.

Stock Code: DS-7108HGHI-F1

Hikvision 7100 Series 8CH Turbo High Definition Stand Alone DVR - Support H.264+/H.264 video compression, 8 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1-ch RCA, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 10-ch IP camera input (up to 4 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Motion 1.0, 1U Mini White Unit, Smart search for efficient playback, Remote viewing from anywhere on pc and cellphone, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview:
Turbo HD DVR is an advanced recorder developed by Hikvision independently which can connect HD analog cameras and provide powerful surveillance. It features multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system. This DVR is widely applied in the areas of finance, public security, military, communication, transportation, education, etc.

Features:

• Support H.264+/H.264 video compression
• Support HDTVI/AHD/CVI/CVBS/IP video input
• Up to 4-ch 960p IP camera input for DS-7104HGHI-F1, up to 8/16-ch 1080p IP camera input for DS-7108/7116HGHI-F1
• Max. 1200 m for 720p HDTVI signal

Please Note : The Cameras and Hard Disk Drive up to 6TB are not included in this package , They can be purchased separately

Specifications:
• Product Code: DS-7108HGHI-F1
• Description: Hikvision 7108 Series 8CH Turbo High Definition Stand Alone DVR

• Hikvision 7108 Series 8CH Turbo High Definition Stand Alone DVR

• Support H.264+/H.264 video compression

• 8 Channel Analog and HD-TVI video input

• BNC interface (1.0Vp-p, 75 Ω) supporting coaxitron connection

• Audio Input: 1 channel

• SATA Interface Support up to 6TB Hard disk drive

• 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel

• Supports real-time 1080p lite when enabled the image effect is similar to 1080p

• HDMI/VGA output at up to 1920 × 1080 resolution

• Retail Box

• 1 year warranty

Stock Code: DS-7104HGHI-F1

Hikvision 7104 Series 4 Channel Turbo 720p High Definition Stand Alone DVR - Support H.264+/H.264 video compression, 4 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 O),supporting coaxitron connection, Audio Input: 1 channel, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled, the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision 7104 Series 4 Channel Turbo 720p High Definition Stand Alone DVR - Support H.264+/H.264 video compression, 4 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1 channel, SATA Interface Support up to 6TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled, the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, Retail Box , 1 year warranty

Product Overview
Hikvision Turbo HD 4 Channel Stand Alone 720p DVR is an advanced Digital video recorder can connect HD analog cameras and provide powerful surveillance. It features multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system. This DVR is widely applied in the areas of finance, public security, military, communication, transportation, education, etc.

Please Note : The Cameras and Hard Disk Drive are not included in this package , They can be purchased separately

Highlights
• 4 x Channel Turbo 720p High Definition Stand Alone DVR
• Support H.264+/H.264 video compression
• Synchronous playback at 720p resolution; and reverse playback for multi-camera
• 4 Channel Analog and HD-TVI video input
• BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection
• Audio Input: 1 channel
• 1x SATA Interface Support up to 6TB Hard disk drive
• 10/100 self-adaptive Ethernet interface
• 2x USB 2.0 Ports on Rear panel
• Supports real-time 1080p lite when enabled, the image effect is similar to 1080p
• HDMI/VGA output at up to 1920 × 1080 resolution

Stock Code: DS-2CE16D0T-VFIR3F

Hikvision 1080P Bullet, Vari-Focal 2.8-12mm, 40m IR Distance, 4in1, 102.25-32 Degree Horizontal View, Retail Box, 1 Year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision 1080P Bullet, Vari-Focal 2.8-12mm, 40m IR, 4in1, 102.25-32 Degree Horizontal View, Retail Box, 1 Year warranty

Features
• 2 megapixel high performance CMOS
• Analog HD output, up to 1080p resolution
• Day/Night switch
• Smart IR
• Up to 40 m IR distance
• Switchable TVI/AHD/CVI/CVBS
• IP66

Specifications
• Product Code: DS-2CE16D0T-VFIR3F
• Description: Hikvision 1080P Bullet

Camera
• Image Sensor: 2MP CMOS image sensor
• Signal System: PAL/NTSC
• Effective Pixels: 1920 (H) ×1080 (V)
• Min. illumination: 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR
• Shutter Time: 1/25 (1/30) s to 1/50,000 s
• Lens: 2.8 - 12 mm @ F1.4, Angle of view: 102.25° - 32 °
• Lens Mount: Φ14
• Day & Night: ICR
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
• Synchronization: Internal synchronization
• Video Frame Rate: 1080p@25fps/1080p@30fps
• HD Video Output: 1 analog HD output
• S/N Ratio: >62 dB

General
• Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
• Power Supply: 12 VDC±15%
• Power Consumption: Max. 4 W
• Protection Level: IP66
• IR Range: Up to 40 m
• Dimensions: 92mm×84.8mm×269.6mm (3.62”×3.34”×3.34”)
• Weight: Approx. 900g (1.98lb)

Stock Code: DS-2CE56D0T-VFIR

Hikvision 1080P Dome, Vari-Focal 2.8-12mm, TVI/AHD/CVI/CVBS 40m IR, 4in1, 102.25-32 Degree Horizontal View, Retail Box, 1 Year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision 1080P Dome, Vari-Focal 2.8-12mm, 30m IR, 4in1, 102.25-32 Degree Horizontal View, Retail Box, 1 Year warranty

Features:
• 2 megapixel high performance CMOS
• Analog HD output, up to 1080p resolution
• Day/Night switch
• Smart IR
• Up to 30 m IR distance
• Switchable TVI/AHD/CVI/CVBS

Specifications:
• Product Code: DS-2CE56D0T-VFIR
• Description: Hikvision 1080P Dome, Vari-Focal 2.8-12mm

Camera
• Image Sensor: 2.0 megapixel progressive scan CMOS
• Signal System: PAL/NTSC
• Effective Pixels: 1920 (H) × 1080 (V)
• Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1/25(1/30) s to 1/50,000 s
• Lens: 2.8 - 12 mm @ F1.4
• Lens Mount: φ14
• Adjustment Range: Pan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355°
• Day& Night: IR cut filter with auto switch
• Video Frame Rate: PAL: 1080p@25fps
• NTSC: 1080p@30fps
• HD Video Output: 1 Analog HD output
• Synchronization: Internal Synchronization
• S/N Ratio: More than 62 dB

General
• Operating Conditions: -40 °C - 60 °C (-40 °F - 140 °F)
• Humidity 90% or less (non-condensing)
• Power Supply: 12 VDC±15%
• Power Consumption: Max. 4 W
• IR Range: Up to 30m
• Dimension: Φ136 × 101 mm (Φ 5.35” × 3. 98”)
• Weight: 600 g

Stock Code: DS-2CE12DF0TLFS 2.8MM

2 MP Smart Hybrid Light with ColorVu Fixed Bullet Camera- Featuring a smart-hybrid light system and advanced 3D DNR technology, High quality imaging with 2 MP, 1920 × 1080 resolution, Up to 40 m white light distance for bright night imaging and Up to 40 m IR distance for bright night imaging.

Click Here For More Detail

Click Here For a Quick Description

Product Overview

The 2 MP Smart Hybrid Light with ColorVu Fixed Bullet Camera delivers high-quality 1920 x 1080 resolution imaging, ensuring clear visuals day and night with its F1.0 aperture for 24/7 color imaging. Featuring a smart-hybrid light system and advanced 3D DNR technology, it provides flexible lighting options and sharp images, even in low-light conditions. With a robust design that includes up to 40m white light and IR distance, along with audio capabilities and IP67 water and dust resistance, this camera is ideal for comprehensive outdoor security.

Specifications

Product Code:	DS-2CE12DF0TLFS 2.8MM
Description:	HIKVISION TURBO 2 MP COLOR-VU BULLET
Image Sensor:	2 MP CMOS
Max. Resolution:	1920 (H) × 1080 (V)
Min. Illumination:	0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time:	PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night:	ICR
Ange Adjustment:	Pan: 0° to 360°,Tilt: 0° to 180°,Rotate: 0° to 360°
Signal System:	PAL/NTSC
Lens Type:	2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV:	2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126° 3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°
Pickup Distance:	In a radius of up to 5 m
Supplement Light Type:	Smart,IR,White Light
Supplement Light Range:	IR: Up to 40 m,White Light: Up to 40 m
Image Parameters Switch:	STD/HIGH-SAT/HIGHLIGHT
Image Settings:	Brightness, Sharpness, Anti-banding, AGC
Noise Reduction:	3D DNR/2D DNR
Image Enhancement:	DWDR, BLC, HLC, Global
Video Output:	Switchable TVI/AHD/CVI/CVBS
Power:	12 VDC ± 25%, max. 4.2 W,*You are recommended to use one power adapter to supply the power for one camera.
Dimansion:	192.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
Weight:	Approx. 525 g (1.16 lb.)
Operating Condition:	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
Communication:	HIKVISION-C
Language:	English

Stock Code: DS-2CE72DF0TLFS 2.8MM

Hikvision 2 MP Smart Hybrid Light with ColorVu Fixed Turret Camera, Retail Box, 1 Year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision 2 MP Smart Hybrid Light with ColorVu Fixed Turret Camera, Retail Box, 1 Year warranty

Product Overview

The Hikvision 2 MP Smart Hybrid Light with ColorVu Fixed Turret Camera offers high-quality imaging with a 1920 x 1080 resolution, ensuring clear visuals day and night. Featuring a wide F1.0 aperture and smart hybrid light technology, it provides 24/7 color imaging and flexible lighting options for enhanced security. With advanced 3D DNR technology and a built-in microphone for audio over coaxial cable, this camera delivers sharp images and high-quality sound, making it ideal for comprehensive surveillance needs.

Specifications

•Product code: DS-2CE72DF0TLFS 2.8MM

•Description: Hikvision 2 MP Smart Hybrid Light with ColorVu Fixed Turret Camera

•High quality imaging with 2 MP, 1920 × 1080 resolution

•24/7 color imaging with F1.0 aperture

•Smart-Hybrid light, optimize your security with flexible lighting options

•3D DNR technology delivers clean and sharp images

•2.8 mm, 3.6 mm fixed focal lens

•Up to 40 m white light distance for bright night imaging

•Up to 40 m IR distance for bright night imaging

•Image Sensor 2 MP CMOS Max. Resolution 1920 (H) × 1080 (V)

•Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

•Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

•Day & Night ICR

•Angle Adjustment Pan: 0° to 360°,Tilt: 0° to 75°,Rotate: 0° to 360°

•Signal System PAL/NTSC

•Lens Type 2.8 mm

•Focal Length & FOV 2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°

•Supplement Light Type IR,

•White Light

•Supplement Light Range IR: Up to 40 m,White Light: Up to 40 m

•Smart Supplement Light Yes

•Image Parameters Switch

•STD/HIGH-SAT/HIGHLIGHT

•Image Settings

•TVI: 1080p @25 fps/30 fps

•CVI: 1080p @25 fps/30 fps

•AHD: 1080p @25 fps/30 fps

•CVBS: PAL/NTSC

•Day/Night Mode Auto/Color/BW (Black and White)

•Wide Dynamic Range (WDR) Digital WDR

•Noise Reduction 3D DNR/2D DNR

•White Balance Auto, Manual

•Material Enclosure: Plastic, Main body: Metal

•Power 12 VDC ± 25%, max. 4.2 W,*You are recommended to use one power adapter to supply the power for one camera.

•Dimension Ø110 mm × 98.3 mm (4.33" × 3.87")

•Weight Approx. 320 g (0.71 lb.)

•Operating Condition -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)

Stock Code: DS-2CE56D0T-VFIR3F

Hikvision 1080P Dome, Vari-Focal 2.8-12mm, TVI/AHD/CVI/CVBS 40m IR, 4in1, 102.25-32 Degree Horizontal View, Retail Box, 1 Year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision 1080P Dome, Vari-Focal 2.8-12mm, 30m IR, 4in1, 102.25-32 Degree Horizontal View, Retail Box, 1 Year warranty.

Features:
• 2 megapixel high performance CMOS
• Analog HD output, up to 1080p resolution
• Day/Night switch
• Smart IR
• Up to 30 m IR distance
• Switchable TVI/AHD/CVI/CVBS

Specifications:
• Product Code: DS-2CE56D0T-VFIR
• Description: Hikvision 1080P Dome, Vari-Focal 2.8-12mm

Stock Code: DS-2CE10DF0TLFS 2.8MM

Hikvision 2 MP 2.8mm Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera, Retail Box, 1 Year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision 2 MP 2.8mm Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera, Retail Box, 1 Year warranty

Product Overview

The Hikvision 2 MP 2.8mm Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera offers advanced surveillance capabilities with its innovative Smart Hybrid Light technology, providing three lighting modes: IR, white light, and smart mode. This camera captures vibrant color images even in low-light conditions, ensuring crucial details are recorded while deterring potential intruders.

Specifications

•Product code: DS-2CE10DF0TLFS 2.8MM

•Description: Hikvision 2 MP 2.8mm Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera

•Image Sensor 2 MP CMOS

•Max. Resolution 1920 (H) × 1080 (V)

•Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

•Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

•Day & Night ICR

•Angle Adjustment Pan: 0° to 360°,Tilt: 0° to 90°,Rotate: 0° to 360°

•Signal System PAL/NTSC

•Lens Type 2.8 mm and 3.6 mm fixed focal lens

•Focal Length & FOV 2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°

•3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°

•Lens Mount M12

•Supplement Light Type IR,

•White Light

•Supplement Light Range IR: Up to 20 m,White Light: Up to 20 m

•Smart Supplement Light Yes

•Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT

•Image Settings Brightness, Sharpness, Anti-banding, AGC

•Frame Rate TVI: 1080p @25 fps/30 fps

•CVI: 1080p @25 fps/30 fps

•AHD: 1080p @25 fps/30 fps

•CVBS: PAL/NTSC

•Day/Night Mode Auto/Color/BW (Black and White)

•Wide Dynamic Range (WDR) Digital WDR

•Noise Reduction 3D DNR/2D DNR

•Image Enhancement DWDR,

•BLC,

•HLC,

•Global

•White Balance Auto, Manual

•Video Output Switchable TVI/AHD/CVI/CVBS

•Built-in Microphone Yes

•Material Front cover: Plastic, Main body: Metal

•Power 12 VDC ± 25%, max. 2.9 W,*You are recommended to use one power adapter to supply the power for one camera.

•Dimension 161.1 mm × 68.4 mm × 65.2 mm (6.34" × 2.69" × 2.57")

•Weight Approx. 395 g (0.87 lb.)

•Operating Condition -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)

•Communication HIKVISION-C

•Language English

Stock Code: DSPD2D12W

Wireless internal 12m Dual-technology detector Detection range: 12 m x 12 m, 85 degreesRF 433MHzOffers reliable protection utilizing two-way wireless technologyPet immunity up to 24 kgPIR+Microwave detectionTamper alarm, intruder alarmCommunicates up to 800 m (in open areas).

Click Here For More Detail

Click Here For a Quick Description

Product Overview

This Wireless Internal 12m Dual-Technology Detector provides robust security with a 12m x 12m detection range and 85-degree coverage. Utilizing PIR and microwave detection, it ensures accurate intruder alerts while offering pet immunity up to 24kg. With two-way RF 433MHz wireless communication and an 800m range, it delivers reliable performance for modern security needs.

Specifications

•Product Code: DSPD2D12W
•Description: Hikvision Wireless Dual Tech Detector
•Bi-directional communication
•Dual technology
•Tamper detection
•Includes ceiling and wall mounting brackets
•Wireless range up to 800m open air.
•Detection range: 12m
•Detection angle: 85 Degrees
•Mounting height: 1.8 to 2.4m
•Frequency: 433MHz
•Battery: Dual CR123A
•Size: 117mm x 69mm x 62mm
•Weight: 135g

Stock Code: DS-2CE70DF0T-PF2.8MM

Hikvision DS-2CE70DF0T-PF2.8mm ColorVu 1080P Dome Outdoor/Indoor 2.8mm 20m IR Distance Turret Camera, Retail Box, 1 Year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision DS-2CE70DF0T-PF2.8mm ColorVu 1080P Dome Outdoor/Indoor 2.8mm 20m IR Distance Turret Camera, Retail Box, 1 Year warranty

Product Overview

Protect your home or small business with Hikvision DS-2CE70DF0T-PF2.8mm ColorVu 1080P Dome Outdoor/Indoor 2.8mm 20m IR Distance Turret Camera. View live footage and playback previous footage captured on the DVR. High Resolution Image Quality.

Specifications

•Product Code: DS-2CE70DF0T-PF2.8MM

•Description: Hikvision ColorVu 1080P Dome Outdoor/Indoor 2.8mm 20m IR Distance Turret Camera

•Image Sensor: 2 MP CMOS

•Max. Resolution: 1920 (H) × 1080 (V)

•Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

•Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

•Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

•Signal System: PAL/NTSC

•Light Alarm: Solid Light Alarm (White Light)

•Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed focal lens

•Focal Length & FOV: 2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

•Supplement Light Range: Up to 20 m

•Smart Supplement Light: Yes

•Supplement Light Type: White Light

•Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT

•Image Settings: Brightness, Mirror, Sharpness, Anti-Banding, AGC

•Day/Night Mode: Color

•White Balance: Auto/Manual

•Video Output: Switchable TVI/AHD/CVI/CVBS

•Material: Plastic

•Operating Condition: -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)

•Power: 12 VDC ± 25%, Max. 2.4 W

What's in the box

•Hikvision ColorVu 1080P Dome Outdoor/Indoor 2.8mm x 1

•Screw Packet x 1

•Drill Template x 1

Stock Code: HKED4082CAB1G4Z

Hikvision 8GB DDR4 3200MHz SO-DIMM Memory, Retail Box , Limited 1year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision 8GB DDR4 3200MHz SO-DIMM Memory, Retail Box , Limited 1year warranty

Product Overview

The Hikvision DDR4 S1 series ensures precise cycle control using the system clock and the synchronous design of the memories. At the same time, Data I / O transactions are allowed on both sides of the DQS, while the variety of operating frequencies, adjustable latencies and burst lengths offer the ability to perform in a number of cases with large bandwidths and demanding memory applications.

Specifications

•Product code: HKED4082CAB1G4Z

•Features: Hikvision 8GB DDR4 3200MHz SO-DIMM Memory

•Interface: DDR4

•Capacity: 8GB

•Frequency: 2666MHz

•Pin: 260pin

Stock Code: DS-2CE56D0T-IRF2.8MM

Hikvision DS-2CE56D0T-IRF 1080P TVI/AHD/CVI/CVBS Indoor 2.8mm IR Turret Camera, Retail Box, 1 Year warranty

Click Here For More Detail

Click Here For a Quick Description

Hikvision DS-2CE56D0T-IRF2.8MM HD1080P Indoor 2.8mm Lens IR Turret Camera, Retail Box, 1 Year warranty

Features:
• 2 megapixel high performance CMOS
• Analog HD output, up to 1080p resolution
• Day/Night switch
• Smart IR
• Up to 20 m IR distance
• Switchable TVI/AHD/CVI/CVBS
• IP66

Specifications
• Product Code: DS-2CE56D0T-IRF2.8MM
• Description: Hikvision DS-2CE56D0T-IRF2.8MM HD1080P Indoor 2.8mm Lens IR Turret Camera

Camera
• Image Sensor: 2MP CMOS image sensor
• Signal System: PAL/NTSC
• Frame Rate PAL: 1080p@25fps, NTSC: 1080p@30fps
• Resolution: 1920 (H) ×1080 (V)
• Min. illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1/25 (1/30) s to 1/50,000 s
• Lens: 3.6 mm, 2.8 mm, 6 mm fixed lens
• Horizontal Field of View: 103°(2.8 mm), 82.2°(3.6 mm), 54°(6 mm)
• Lens Mount: M12
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Synchronization: Internal synchronization

Menu

• AGC: Low/middle/high
• Day/Night Mode Smart/color/BW(Black and White)
• Backlight Compensation Yes
• DWDR: Yes
• Language: English, Chinese
• Functions: Brightness, Sharpness, DNR, Mirror

Interface
• Video Output: 1 HD analog output
• Switch Button: TVI/AHD/CVI/CVBS

General
• Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
• Power Supply: 12 VDC ±15%
• Power Consumption Max.: 4 W
• Ingress Protection: IP66
• Material Enclosure: Plastic, Main Body: Metal
• IR Range: Up to 20 m
• Dimension: Φ 89.9 mm × 70.1 mm (3.54" × 2.76")
• Weight: Approx. 280 g (0.62 lb.)

1 to 24 of 40 items

Page 1 | 2 | > | >>

Photographed products shown above are for illustrative purposes only. www.esquireshop.com © 2021
